Product Details:
Payment & Shipping Terms:
|
| Material: | Anti-burn ABS / PBT | Color: | Grey |
|---|---|---|---|

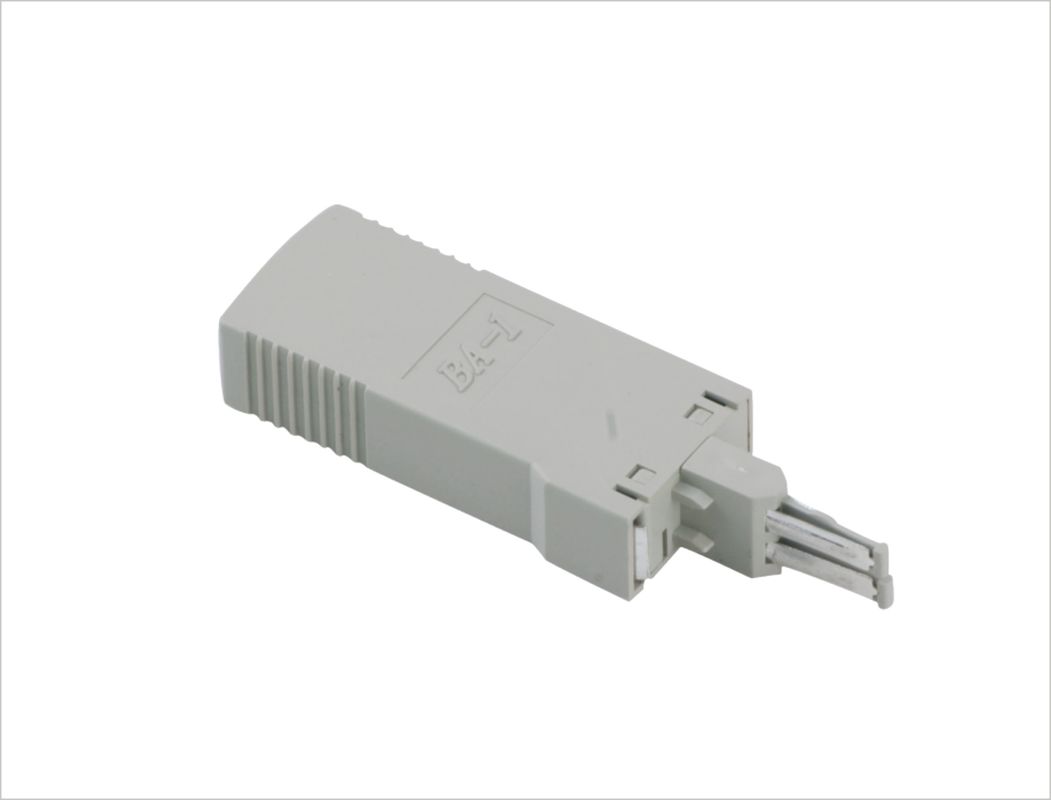

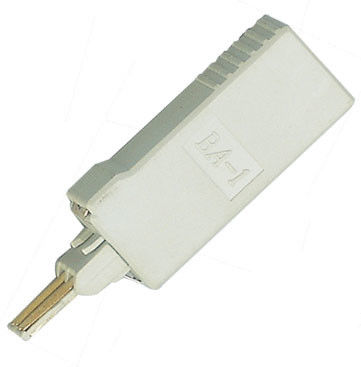

| Category: | Copper Communications | Gas Discharge Tube: | 2 Or 3 Pole Can Be Chosen |
| Specification: | 1 Pair | Flame Retardant Performance: | UL94 -V0 |
| Contact Pin: | Silver-plated Phosphor Bronze | With LED Light: | Yes |
Quick Detail:
1, Material: PBT or ABS(UL94V-0)
2, Contact: Phosphor Bronze
3, Silver Plating: 0.5 um1.25 um5 um
4, Can be installed on krone type terminal block
5, With 2pole arrester or 3 pole arrester,can be with duct cover.
6. 8Pair protection magazine,10Pair protection magazine,krone single pair protector,5pin lightning protector,various type on option.
7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.
Description:
Specifications:
Direct current break over voltage: 200-260V
Resistance to alternating current: 5A / 10A
Pulse break over voltage: <=800V
Resistance to pulse current: 5KA / 10KA
Zero power resistor: <=22 Ohm
Insulation resistor: >1x108M Ohm
Absolute error: <=2 Ohm
Re-flow operation characteristics: 110mA (60V DC))
Lasting time: 60s
Over-current operation characteristics:
a) Initial current: 0.35A - 3A
b) Decreased to 0.15A: <=20 / 15 / 5 / 1.5 / 0.5 / 0.2s
Main technical:
Material: reed using tin bronze, and the outer layer of silver-plated,Approve National Standards: YD/T694-2004 Main Distribution Frame
Insulation Features: ≥ 2000Mohm
Contact resistance: ≤7mohm
Resistance to voltage: ≥1000V/1min without breakdown or arcover-current.
Our Services :
All of our goods will pass QUALITY INSPECTIONS before shipment.
Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
More than 22 years experience in in product production to make your order more smooth.
On time delivery, in general 10~15 days.
Multimode payment: T/T, Paypal,Western Union.
Special dimensions available according to request.
We have many certificates of our goods.
Specifications :
| Mechanical Performance | Plastic material: ABS&PBT(UL94V-0) |
| Contact material: Phosphor Bronze. | |
| Surface Plating Silver(0.5um-5um) | |
| Earth bar: Phosphor Bronze.Surface Plating nickel | |
| Environment Characteristic | Storage Tempreture: 40 to 70°C |
| Operating Temperature : 10 to 60°C | |
| Relative Humidity: 95%, noncondition | |
| Electrical Performance | Insulation resistance: 1000 Mohms minimum |
| Contact resistance :5 mohms maximum | |
| Dielectric intensity: 1200V DC 60s can't spark over and haven't fly arc |
