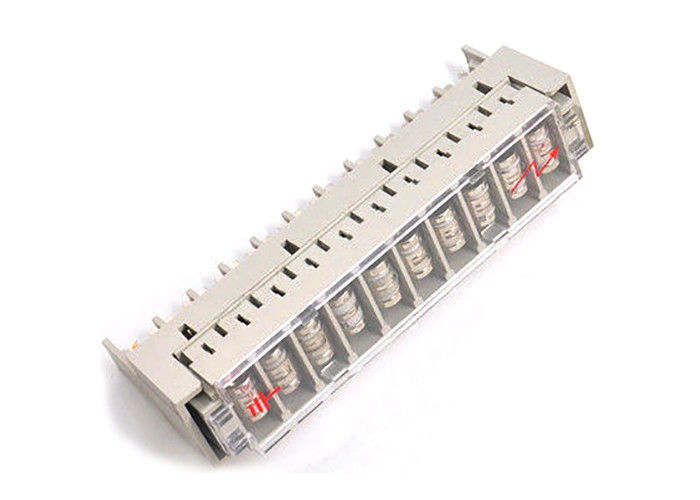

Environmental Protection Krone Module 10 Pair 3 Pole Arrester Magazine YH6089202461

China Environmental Protection Krone Module 10 Pair 3 Pole Arrester Magazine YH6089202461 supplier
Environmental Protection Krone Module 10 Pair 3 Pole Arrester Magazine YH6089202461 supplier Environmental Protection Krone Module 10 Pair 3 Pole Arrester Magazine YH6089202461 supplier

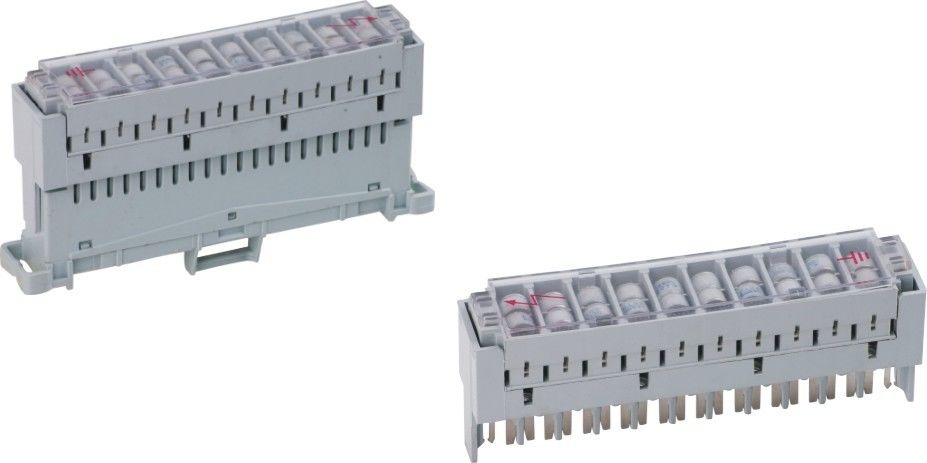

Large Image :  Environmental Protection Krone Module 10 Pair 3 Pole Arrester Magazine YH6089202461

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-6089 2 024-61

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: 1 pcs/box
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per day
Contact Now
Detailed Product Description
Material: Anti-burn ABS / PBT Category: Copper Communications
Color: Grey Specification: 5&8&10 Pair
Flame Retardant Performance: UL94 -V0 Contact Pin: Silver-plated Phosphor Bronze
First Static Breakdown Voltage: 350A Static Breakdown Voltage: 300V

Environmental Protection Krone Module 10 Pair 3 Pole Arrester Magazine YH6089202461

Quick Detail:



1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type terminal block

5, With 2pole arrester or 3 pole arrester,can be with duct cover.

6. 8Pair protection magazine,10Pair protection magazine,krone single pair protector,5pin lightning protector,various type on option.

7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.





Description:

Mechanical Performance
Plastic material: ABS&PBT(UL94V-0)
Contact material: Phosphor Bronze.
Surface Plating Silver(0.5um-5um)
Earth bar: Phosphor Bronze.
Surface Plating nickel

Electrical Performance:
Insulation Resistance: R≥1000M Ohm
Contact Resistance: R≤5m ohm
Dielectric Strength: 1200V DC 60s can't spark over and haven't fly arc



The 10pair LSA magazine can be offerred with arrester or unequiped.Gas Discharge Arrester available for 2pole and 3pole types.Usually with voltage 230v arrester(GDT).Each magazine is completely tested before sending to our clients.This protection magazine is used together with the LSA krone module 10pair and 8pair .Meantime there is a plastic cover to plug into the top for avoid any duct affaction.



ORDERING INFORMATION



Item no. Description

MT-60892024-61 10pair magazine with 2pole arrester,unequipped on option
MT-60892023-08 10pair magazine with 3pole arrester,unequipped on option



The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.





Features:

1. Designed for the complete equipment of Krone disconnection module and connection module, for overvoltage protection functions.
2. Could be installed with 2 pole or 3 pole overvoltage arrester (GDT).
3. Material of Plastic Parts: PBT/ABS/PC, Fair-Resistant
4. Color: Gray base with gray body.
5. With yellow Mark or dust cover available.







Specifications :

Mechanical Performance Plastic material: ABS&PBT(UL94V-0)
Contact material: Phosphor Bronze.
Surface Plating Silver(0.5um-5um)
Earth bar: Phosphor Bronze.Surface Plating nickel
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance :5 mohms maximum
Dielectric intensity: 1200V DC 60s can't spark over and haven't fly arc
