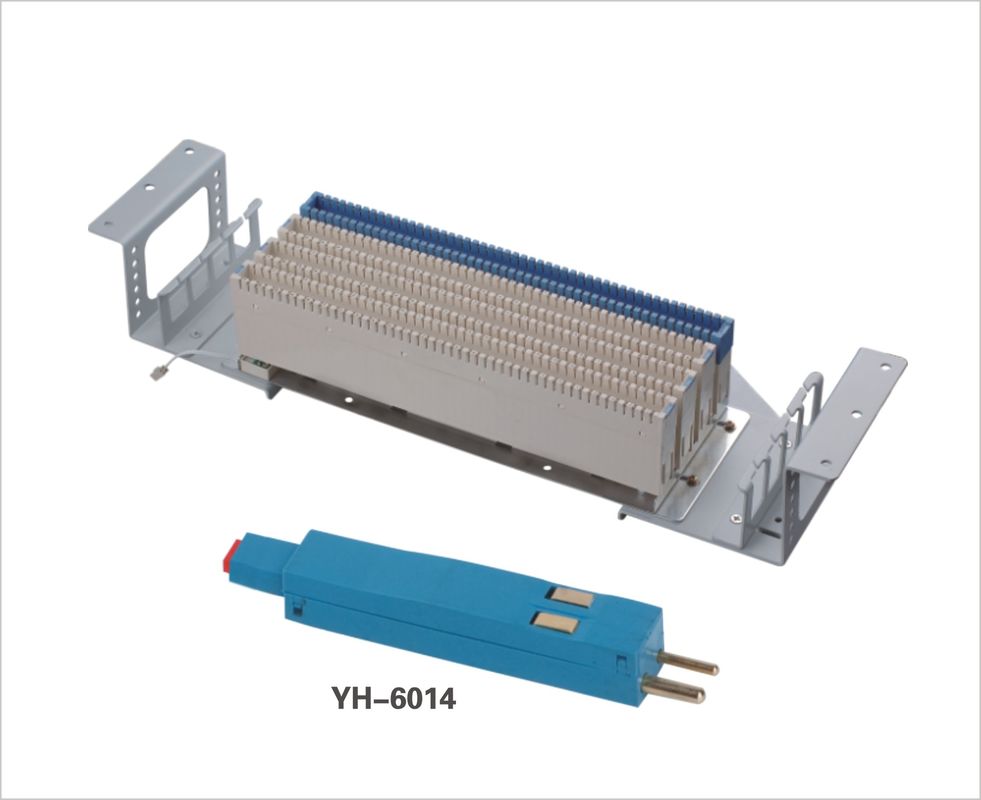

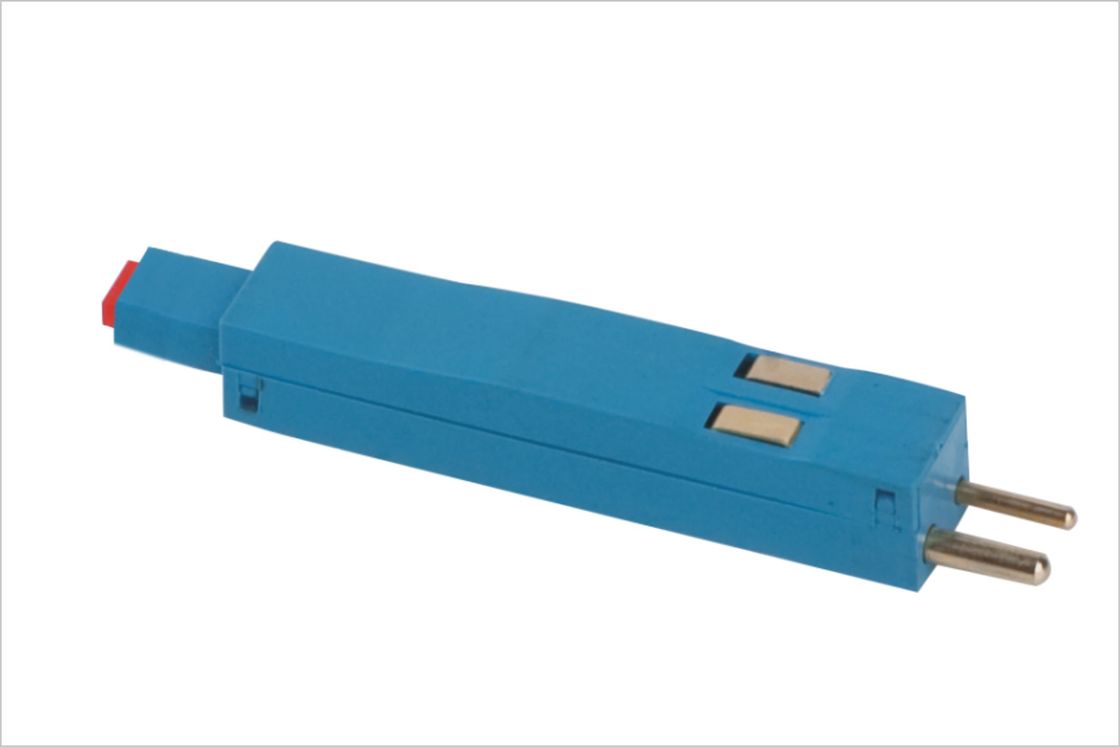

Huawei Type MDF Terminal Block Protector Unit Anti - Burn ABS / PBT Material YH6014

China Huawei Type MDF Terminal Block Protector Unit Anti - Burn ABS / PBT Material YH6014 supplier
Huawei Type MDF Terminal Block Protector Unit Anti - Burn ABS / PBT Material YH6014 supplier Huawei Type MDF Terminal Block Protector Unit Anti - Burn ABS / PBT Material YH6014 supplier

Large Image :  Huawei Type MDF Terminal Block Protector Unit Anti - Burn ABS / PBT Material YH6014

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-6014

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: 100 pcs/box
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 per day
Contact Now
Detailed Product Description
Material: Anti-burn ABS / PBT Color: Blue
Category: Copper Communications Gas Discharge Tube: 2 Or 3 Pole Can Be Chosen
Specification: 1 Pair Flame Retardant Performance: UL94 -V0
Contact Pin: Silver-plated Phosphor Bronze With LED Light: Yes

Huawei Type MDF Terminal Block Protector Unit Anti - Burn ABS / PBT Material YH6014

Quick Detail:

1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type terminal block

5, With 2pole arrester or 3 pole arrester,can be with duct cover.

6. 8Pair protection magazine,10Pair protection magazine,krone single pair protector,5pin lightning protector,various type on option.

7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.





Description:

Specifications:

Direct current break over voltage: 200-260V
Resistance to alternating current: 5A / 10A

Pulse break over voltage: <=800V
Resistance to pulse current: 5KA / 10KA
Zero power resistor: <=22 Ohm
Insulation resistor: >1x108M Ohm
Absolute error: <=2 Ohm
Re-flow operation characteristics: 110mA (60V DC))
Lasting time: 60s
Over-current operation characteristics:
a) Initial current: 0.35A - 3A
b) Decreased to 0.15A: <=20 / 15 / 5 / 1.5 / 0.5 / 0.2s

Main technical:

Material: reed using tin bronze, and the outer layer of silver-plated,Approve National Standards: YD/T694-2004 Main Distribution Frame
Insulation Features: ≥ 2000Mohm
Contact resistance: ≤7mohm
Resistance to voltage: ≥1000V/1min without breakdown or arcover-current.

ORDERING INFORMATION

Item no. Description

MT-59091063-40 With 3pole arrester for krone module,over voltage 230V
MT-6010 With 3pole arrester for krone module,over voltage 230V
MT-6011 With 3pole arrester for krone module,over voltage 230V,with LED light

MT-60892024-61 10pair magazine with 2pole arrester,unequipped on option
MT-60892023-08 10pair magazine with 3pole arrester,unequipped on option







Applications:

High speed LAN and WAN systems,used to protect the telecom equipment from damage of lightning,over voltage and over currence.





Specifications :

Mechanical Performance Plastic material: ABS&PBT(UL94V-0)
Contact material: Phosphor Bronze.
Surface Plating Silver(0.5um-5um)
Earth bar: Phosphor Bronze.Surface Plating nickel
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance :5 mohms maximum
Dielectric intensity: 1200V DC 60s can't spark over and haven't fly arc
