|Color:||Grey||Flame Retardant Performance:||UL94 -V0|
|Contact Pin:||Silver-plated Phosphor Bronze||Gas Discharge Tube:||2 Or 3 Pole Can Be Chosen|
|Static Breakdown Voltage:||300V||First Static Breakdown Voltage:||350A|
1, Material: PBT or ABS(UL94V-0)
2, Contact: Phosphor Bronze
3, Silver Plating: 0.5 um1.25 um5 um
4, Can be installed on krone type terminal block
5, With 2pole arrester or 3 pole arrester,can be with duct cover.
6. 8Pair protection magazine,10Pair protection magazine,krone single pair protector,5pin lightning protector,single line protectors, the BRCP-SP splitter block ,various type on option.
7, 100% test passed,arrester voltage usually for 230V,it can be on your requirement.

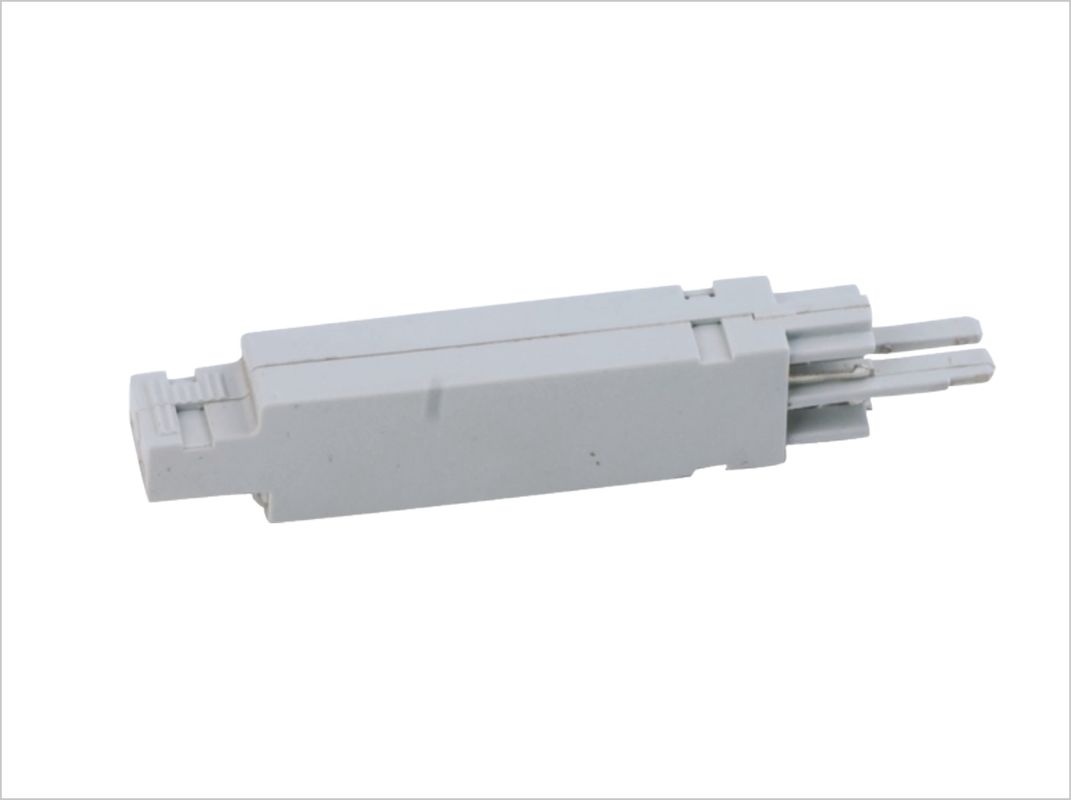

With individual single line protectors, the BRCP-SP splitter block provides modular protection while preserving the density provided by the block, making it adaptable to confined spaces of remote terminals, shelters or telecom closets in residential or corporate buildings.
230V and 260V over-voltage protectors provide protection for lines carrying POTS, xDSL and g.SHDSL services while the 420V over-voltage protectors provide protection of lines of E1/T1 and ISDN PRI services
Integrated Splitter Block Mechnical specifications:
48-port splitter block- Hight:135mm
width: 133mm Depth: 143mm
Wire range IDC contacts- 0.4mm-0.8mm (26AWG to 20AWG)
BRCP-SP C242707A is the solution for XDSL and NGN deployment at the CO and remote locations:New IP DSLAM deployment in Central offices and FTTN remotes;New DSLAM or MDU ONT deployment in FTTB application;Spot migration of ATM DSLAMs to IP DSLAMs;MSAN/BBDLC deployment for NGN migration.Integration of individually replaceable POTS splitters(usually in equipment)inside the terminal block may provide significant cost savings with materials and labor during installation.Provides space savings at the MDF and cross-connect field.Fully compatible with splitter-less applications(VOIP,unbundling,G.sHDSL).Wire guide channels to keep wires twisted to the IDC terminals.Various over-voltage protection solution available.
Contacts: Bronze, tin (Sn) plating
Insulation resistance: > 1000M Om
Contact resistance: < 10mOm
Dielectric strength: 3000V rms, 60Hz AC
High voltage surge: 3000V DC surge
Insertion loss: <0.01dB to 2.2MHz <0.02dB to 12MHz <0.04dB to 30MHz
Return loss: >57dB to 2.2MHz >52dB to 12MHz >43dB to 30MHz
Crosstalk: >66dB to 2.2MHz >51dB to 12MHz >44dB to 30MHz
Operating temperature: -10°C to 60°C
Storage temperature: -40°C to 90°C
Flammability rating: UL94 V-0 material used
High speed LAN and WAN systems,used to protect the telecom equipment from damage of lightning,over voltage and over currence.
|Mechanical Performance||Plastic material: Thermoplastic|
|Contact material: Bronze, tin (Sn) plating|
|Surface Plating Silver(0.5um-5um)|
|Earth bar: Phosphor Bronze.Surface Plating nickel|
|Environment Characteristic||Storage Tempreture: 40 to 70°C|
|Operating Temperature : 10 to 60°C|
|Relative Humidity: 95%, noncondition|
|Electrical Performance||Insulation resistance: 1000 Mohms minimum|
|Contact resistance :10 mohms maximum|
|Dielectric intensity: 3000V rms, 60Hz AC|
