10pair LSA back mount copper Wire Connection Cable Terminal Module YH6089100202

China 10pair LSA back mount copper Wire Connection Cable Terminal Module YH6089100202 supplier

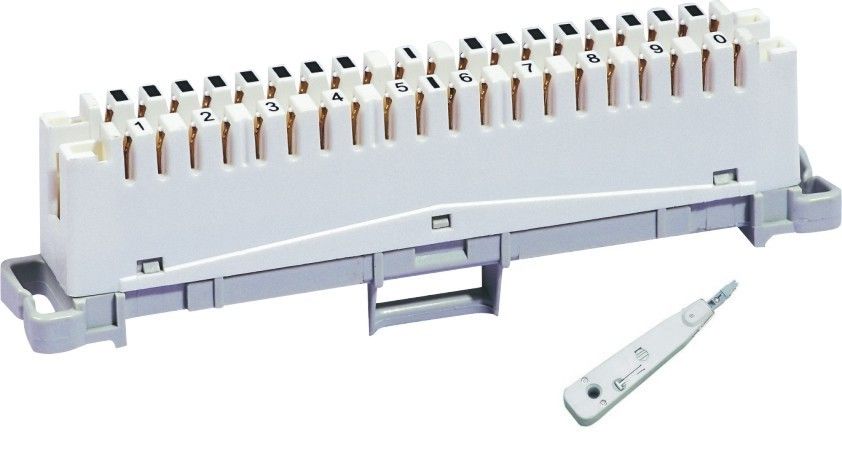

Large Image :  10pair LSA back mount copper Wire Connection Cable Terminal Module YH6089100202

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-6089 1 002 02

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pieces
Price: negotiable
Packaging Details: 200 piece/box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces/day
Contact Now
Detailed Product Description
Material: ABS PBT Contact: Phosphor Bronze With SILVER Plating
Wire Conductor: Diameter 0.4-0.7mm Insulation Diameter: 0.7-1.4mm
Connection: Disconnection Or Connection IDC Pair: 10 Pairs

10pair LSA back mount copper Wire Connection Cable Terminal Module YH6089100202

Quick Detail:



1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type stainless steel back mount frames

5, Available with 50pair block tag and 100pair block tag.

6, for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.





Description:



10pair LSA back mount Wire Disconnection and Connection module



10pair LSA back mount copper Wire Connection Cable Terminal Module



We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.



The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.

The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.



Applications:



High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.



Specifications :



Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance :7 mohms maximum
Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s
