High Band Strip CAT5E Krone Module 10 Pair Terminal Block Back / Profile Mount YH6468506100

China High Band Strip CAT5E Krone Module 10 Pair Terminal Block Back / Profile Mount YH6468506100 supplier
High Band Strip CAT5E Krone Module 10 Pair Terminal Block Back / Profile Mount YH6468506100 supplier High Band Strip CAT5E Krone Module 10 Pair Terminal Block Back / Profile Mount YH6468506100 supplier

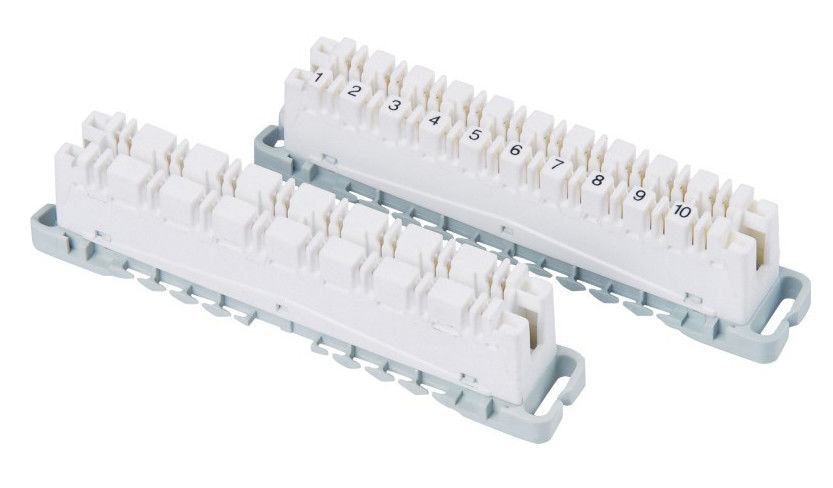

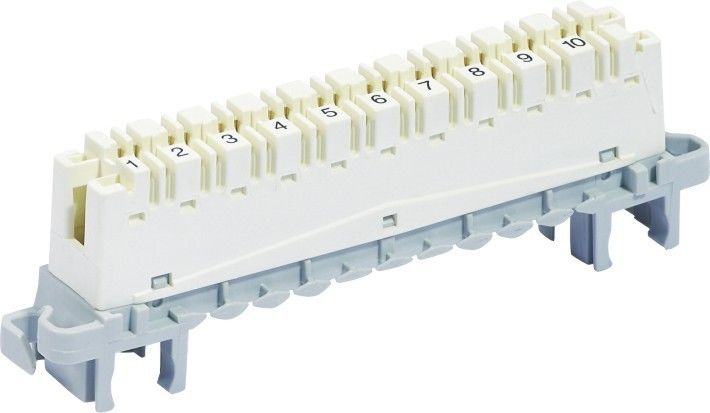

Large Image :  High Band Strip CAT5E Krone Module 10 Pair Terminal Block Back / Profile Mount YH6468506100

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO9001
Model Number: MT-6468 5 061-00

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pieces
Price: negotiable
Packaging Details: 200 piece/box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces/day
Contact Now
Detailed Product Description
Material: ABS Or PBT Color: Red
Type: Connection Or Disconnection Type Silver Plating: 0.5 Um1.25 Um5 Um
Installation: Back&profile Mount Protection Level: UL94-V0

High Band Strip CAT5E Krone Module 10 Pair Terminal Block Back / Profile Mount YH6468506100

Quick Detail:



1, Material: PBT or ABS(UL94V-0)

2, Contact: Phosphor Bronze

3, Silver Plating: 0.5 um1.25 um5 um

4, Can be installed on krone type stainless steel back mount frames

5, High band module for back mount and profile mount type

6, for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.





Description:





This module is desired for setting up unshielded distribution fields for 4 wires and 8 wires cables.It satisfies cat.5(e) with EN50D3/ISO110601.

10 Pair Cat5e Module With Wire Guide Superior high speed data and voice cross connect modules. Available in 8 pair and 10 pair disconnection versions, which enable high LAN and WAN systems maximum headroom in transmission performance .Back mount type and profile type optional.



ORDERING INFORMATION

Item no. Description

YH-5006-8 8pair high band module,back mount type
YH-5006-10 10pair high band module,back mount type
YH-64685061-00 10pair high band module,profile type



We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.



The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.

The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.



Applications:



High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.





Specifications :



Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance :7 mohms maximum
Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s
