| Material: | Stainless Steel | Description: | Earthing Bar For Krone LSA 2/10 Modules |
|---|---|---|---|
| Surface: | Smooth And Plating,no Sharp Edge | Use: | Easy Inserted In The Krone LSA Module |
Quick Detail:
1, Material: Stainless steel

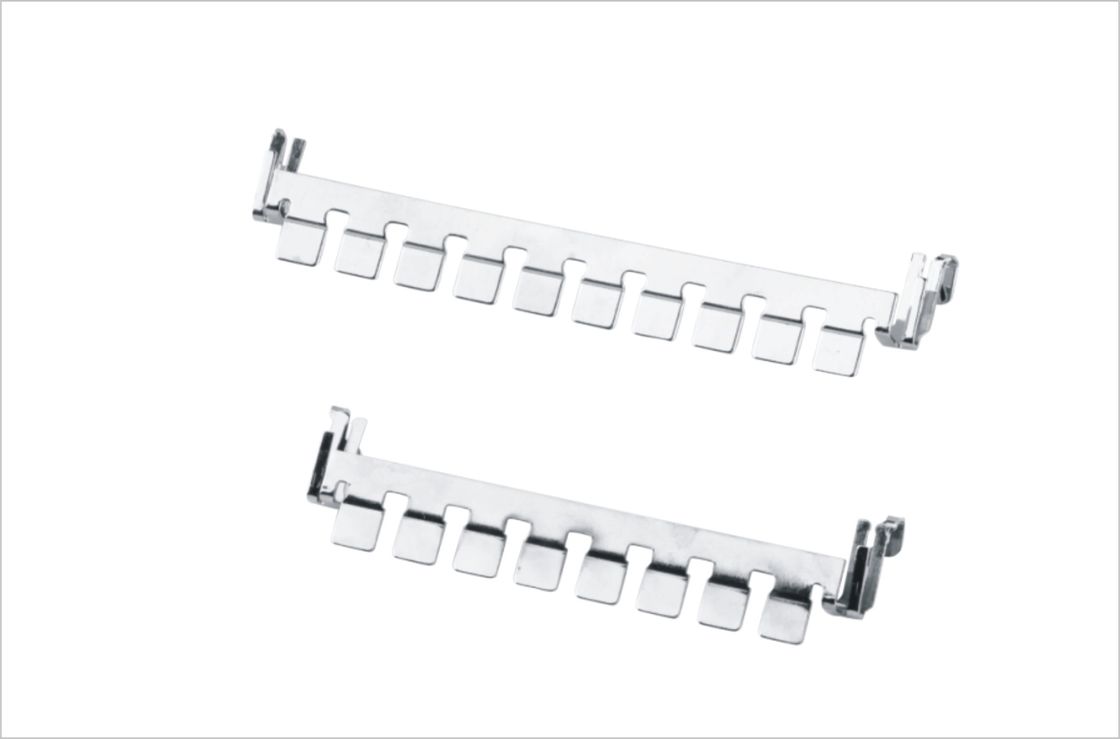

2, Earth Bar for 8pair disconnection module and 10pair disconnection module
3. Additonal accessories offer:Crimping lug for earth wire,earth contact clip,1 pair Disconnection plug ,dumm plug,Number flags with printing 0-1,1-9,10-100
Description:
ORDERING INFORMATION
Item no. Description
YH-59093041-00 8pair earth bar
YH-59093042-00 10pair earth bar
YH-60923034 50pair or 100pair dust cover
YH-60892015-01 10pair Hingled label holder
YH-60892015-02 8pair Hingled label holder
YH-60362018-00 8pair back mount type label holder
YH-60922012-01 10pair back mount type label holder
YH-67532008-00 8pair profile type label holder
YH-67532009-00 10pair profile type label holder
YH-60893023-00 Number flags
YH-60893006 Disconnection plug 1pair
YH-5013 Crimping lug for earthing
We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.
The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.
The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.
Applications:
High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.
Specifications :
| Mechanical Performance | Insertion force : 40~75N |
| Pull Out Force : F≥25N(axial) F≥7.5N(radial) | |
| IDC Life : 200 times(20-26 AWG Solid wire) minimum | |
| Copper Conductor Diameter: Φ0.4~Φ0.8(mm) | |
| Environment Characteristic | Storage Tempreture: 40 to 70°C |
| Operating Temperature : 10 to 60°C | |
| Relative Humidity: 95%, noncondition | |
| Electrical Performance | Insulation resistance: 1000 Mohms minimum |
| Contact resistance :7 mohms maximum | |
| Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s |
