| Material: | Polycarbonate | Wire Range: | AWG26-AWG22 |
|---|---|---|---|
| Gel Inside: | With Or Without | Type: | UY Connector |
| Color: | Yellow | Crimping Tool: | YH-8021 YH-8028 |
Quick Detail:

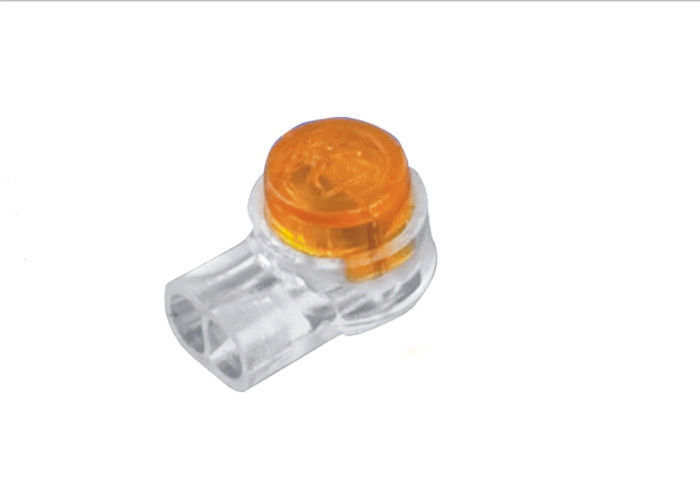

1. UY connector made of polycarbonate
2. wire range of 0.4-0.7 mm (26-22 AWG)
3. insulation outside diameter up to 1.52 mm/.06"
4. Color:Yellow
5. With gel or without gel on option
6. Crimping tool YH-8028(3M item no.E-9BM) ,YH-8021 crimping tool (3M item no.E-9Y)
7. UY/UY2/UR/UG/UB/UDW2 For more options.
8. Splicing module 10pair/25pair pluggable module also on offer.
Description:
3M type wire connectors includes a variety of butt splices and inline tap splices.The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to each wire. A "live-spring" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.
The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.
Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
Various insulation displacement connectors to cat.5 compliance,dry or gell-filled on sales:
AMP picabond connector (green and blue) is on sales, with package in roll which is more convenient for operation.With crimpting tool YH-244271-1
Inline and drop wire connectors can only be used with hand crimping tool YH-8028(3M item no.E-9BM) ,Yh-8021 crimping tool (3M item no.E-9Y) for your option.
Applications:
3M type wire connectors, UY connector, UY2 connector, UR connector, UB connector, UG connector and UDW2 connector are all available on sales. This wire connectors are used to connect two wires safely and fast with gel filling inside, which is moisture proof.
Specifications :
| UR connector | Gel filled for moisture resistance and for PIC cable applications, filled or unfilled. It accepts two or three wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 1.52 mm/.060". It is made of polycarbonate and is Cat. 5 compliant. |
| UY connector | Gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled. It accepts two wires within wire range of 0.4-0.7 mm (26-22 AWG) and insulation outside diameter up to 1.52 mm/.06". It is made of polycarbonate and is Cat. 5 compliant. |
| UY2 connector | gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled.It accepts two wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 2.08 mm/.082". It is made of polypropylene and is Cat. 5 compliant. |
| UDW2 Connector |
is a four wire (one full pair) aerial inline drop-wire connector for copper or copper coated steel conductors. It is used for mid-span splices where strain relief is provided. Gel filled for moisture resistance and for PIC cable applications, it accepts conductors within wire range of 0.9-1.3 mm (19-16 AWG) and insulation outside diameter up to 4.4 mm/.175". It is made of polycarbonate.
|
| UG connector |
llows direct tapping into existing plastic insulated solid copper conductors without interrupting service. It is gel filled for moisture resistance and for PIC cable applications, filled or filled. It accepts conductors within wire range of 0.4-0.9 mm (26-19 AWG) tap and 0.4-0.7 mm (26-22 AWG) run wire with insulation outside diameter up to 1.54 mm/.061" tap and 1.12 mm/.044" run wire. It is made of polycarbonate.
|
