Product Details:
Payment & Shipping Terms:
|
| Material: | Phosphor Bronze With Silver-plated | Application: | Networking, Cabling, Structure Cabling |
|---|---|---|---|
| Color: | Gray ,White,or As Per Customer's Request | Type: | Disconnection Or Connection |
| Insulation Resistance: | ≥ 20000M Ohm (100V DC) | Pull Strength: | ≥ 25N |
| Resistance To Voltage: | ≥ 1000V/min Without Br | Capacity: | 10 Pairs |
Quick Detail:
1, Material: PBT or ABS(UL94V-0)
2, For 8 pair and 10 pair module
3, 1 pair Disconnection plug ,dumm plug
4, Earth Bar for 8pair disconnection module and 10pair disconnection module
5, Crimping lug for earth wire,earth contact clip

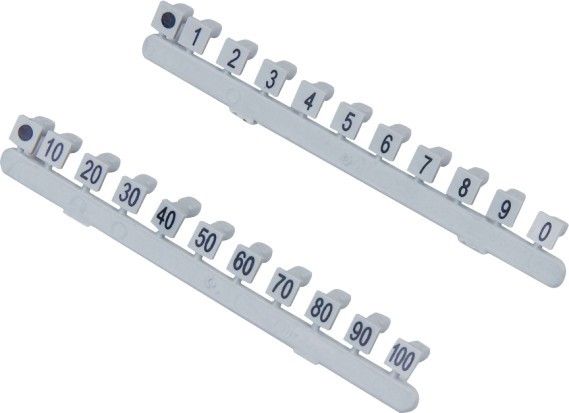

6, Number flags with printing 0-1,1-9,10-100
Description:
• 10 pair disconnection module with label cover.
• The modules are compatible with LSA-PLUS modules.
• The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires.
• Internal diameter of connection wire: 0.4-0.7 mm.
• External diameter of connection wire (shield): 0.7-1.4 mm.
• Intermediate resistance: ≤ 7M Ohm.
• Insulation resistance: ≥ 20000M Ohm (100V DC).
• Contact resistance: ≤ 3M Ohm.
• Resistance to voltage: ≥ 1000V/min without breakdown or arcover-current.
• Pull strength: ≥ 25N.
• Life circle: ≥250 times.
• Material: ABS/PC, reed using tin bronze, and the outer layer of tin/silver/gold plating.
Applications:
High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.
Specifications :
| Mechanical Performance | Insertion force : 40~75N |
| Pull Out Force : F≥25N(axial) F≥7.5N(radial) | |
| IDC Life : 200 times(20-26 AWG Solid wire) minimum | |
| Copper Conductor Diameter: Φ0.4~Φ0.8(mm) | |
| Environment Characteristic | Storage Tempreture: 40 to 70°C |
| Operating Temperature : 10 to 60°C | |
| Relative Humidity: 95%, noncondition | |
| Electrical Performance | Insulation resistance: 1000 Mohms minimum |
| Contact resistance :7 mohms maximum | |
| Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s |
