1. 19inch,1U (2U, 3U) is also offered.
2. Capacity 24 Core,with splicing tray,rack mounting type.
3. Made of Cold Rolled Steel, with excellent performance of mechanical durability, anti-erosion, aging resistance and dustproof,flame-retardant.
4. The panel is easy to be pulled and pushed.
5. FC / SC / LC type,SC duplex adapters are adopted.
6. Capacity for 12/24/48/72/96/144 core is available.
7. With changeable panel for duplex or simplex adapter,easily combination with your real application.
8. The Panel Color grey and black,please order when order
1. Environment temperature:-25℃~+45℃
2. Relative humidity:≤85%(30℃)
3. Atmosphere pressure:70~106KPa
4. Insulated Resistance:≥2×10MΩ/500V(DC)
5. Intensity≤15KV(DC)/1minno spark-over and no flying arc
6. Fiber bending radium guaranteed more than 40mm:≥40mm
7. Material: Cold rolled steel
8. High quality finish,without sharp edges.
9. With changeable panel for duplex or simplex adapter,easily combination with your real application.
Adoptable adapter types: FC, SC,LC/Duplex.

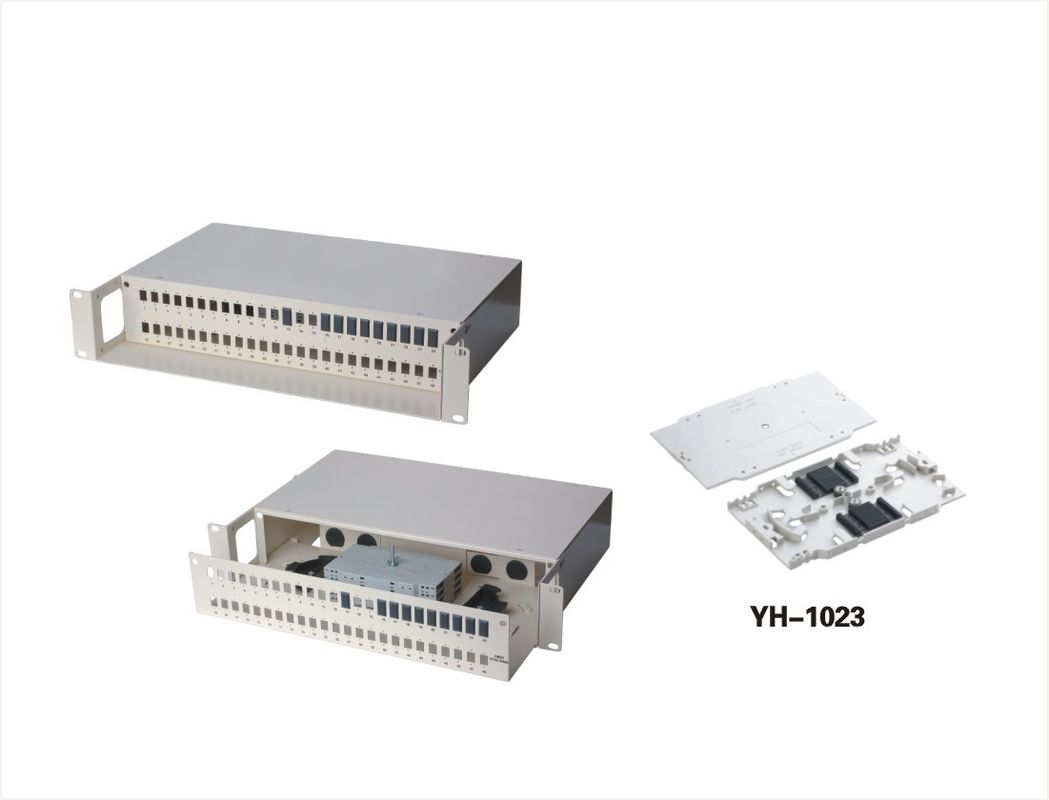

48 96 core FC ODF rack mount Splicing box fiber Optic patch panel
1.MT-1015 48 core FC patch panel
2.With panel for 48pcs FC adaptor
3.The body of panel is easy to be pulled and pulled
4.patch panel with 4 pcs splicing tray
The cabinet has good performance of sealing with a protection level of IP65.
The cabinet is equipped with theft-proof lock, safety and reliability with good vandal-resistant function. The cabinet has flexible cable inlet and outlet structure and internal connecting structure. All operations are fully done at front.
Earth mode: the cabinet has two earth systems, one is protection earth by way of connecting the cable reinforcement with ground, and another is cabinet housing earth. The two earth systems are not connected with each other. They are separately connected with the ground of machinery house with their own earth wire.
It is applicable to ribbon and common cable. The door of the cabinet can be equipped either only at front or both at front and back. There is adequate space for fiber distribution and storage, as well as enough fiber winding trays. Hanging hooks, which are convenient for user to operate.
The direct splice area is specially equipped in the inside of the cabinet; the cables at two ends are connected in the direct splice area.
Protection grade: IP65
Standard working wavelength: 850nm, 1310nm. 150nm
Pressurization: there is no breakdown or flashover when pressurization≥3000V (DC)/1 min between the metal work piece of the cabinet and earth device.
Insulation resistance: the insulation resistance between the metal work piece of the cabinet and earth device. ≥2x10MΩ/500V(DC)
Each surface of the C can be bear bear a vertical pressure>980N. The outermost part of the door can be bear a vertical pressure>200N when the door is open.
The fixing position of cable can be bear can be bear an axial tensile force 1000N,as well as three times of recyclable torsion of ±90°
The curvature radius>40mm
