Product Details:
Payment & Shipping Terms:
|
| Material: | Cold-rolled Steel | Adaptor: | SC Duplex |
|---|---|---|---|
| Capacity: | 12/24/48/72 Core | Dimensions: | 19"x2U(1U 3U) |
| Weight(kg): | 1~20KG | Temperature: | -40°C~+60°C |
| IP Grade: | IP65 | Color: | Gray Or Black |

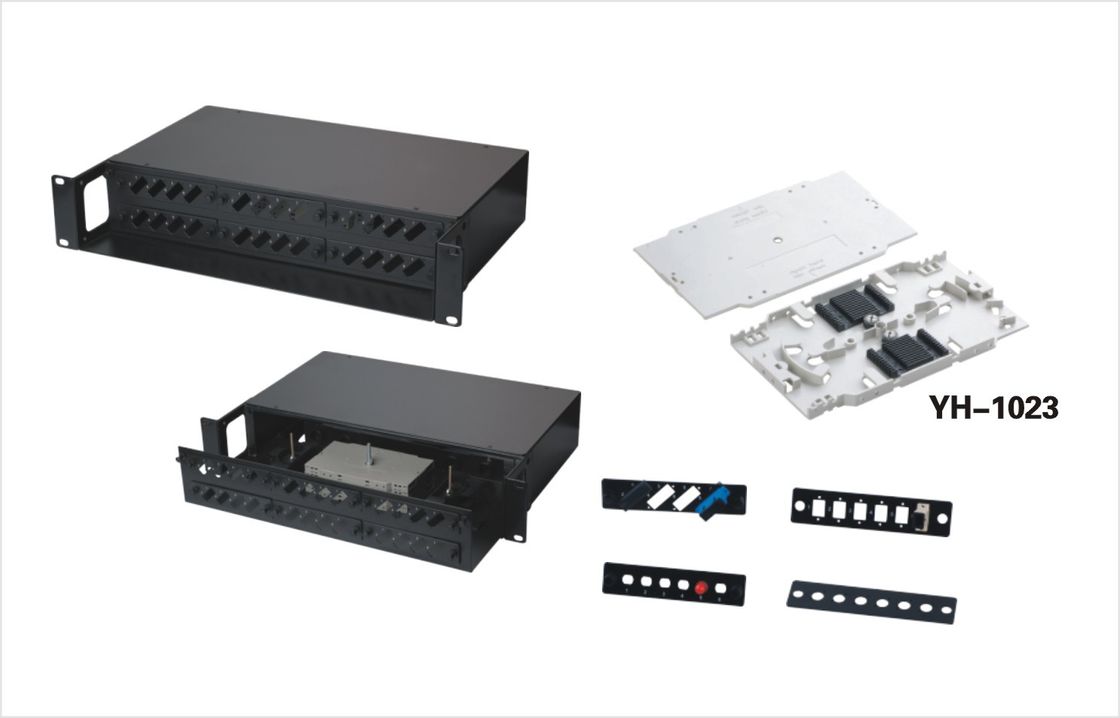

2U Fiber Optic Rackmount Enclosure Panel,Fits 36 port and 19 inch racks
1. 19inch,1U (2U, 3U) is also offered.
2. Capacity 24 Core,with splicing tray,rack mounting type.
3. Made of Cold Rolled Steel, with excellent performance of mechanical durability, anti-erosion, aging resistance and dustproof,flame-retardant.
4. The panel is easy to be pulled and pushed.

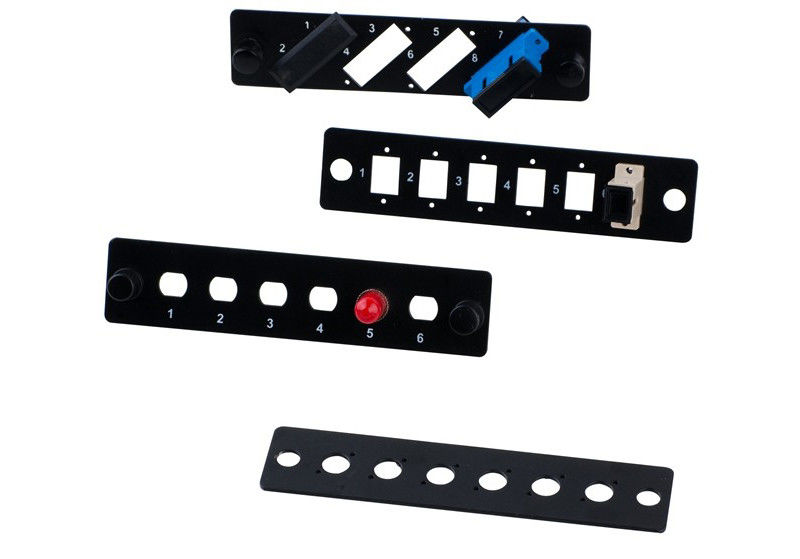

5. FC / SC / LC type,SC duplex adapters are adopted.
6. Capacity for 12/24/48/72/96/144 core is available.
Adoptable adapter types: FC, SC,LC/Duplex.
Description:
19 Inch Sliding Fiber Optic Patch Panel
The removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors. The flexibility of its two piece construction allows you to maintain a stock of the chassis and then attach a suitable front panel as required.
Technical Specifications:
The cabinet has good performance of sealing with a protection level of IP65.
The cabinet is equipped with theft-proof lock, safety and reliability with good vandal-resistant function. The cabinet has flexible cable inlet and outlet structure and internal connecting structure. All operations are fully done at front.
Earth mode: the cabinet has two earth systems, one is protection earth by way of connecting the cable reinforcement with ground, and another is cabinet housing earth. The two earth systems are not connected with each other. They are separately connected with the ground of machinery house with their own earth wire.
It is applicable to ribbon and common cable. The door of the cabinet can be equipped either only at front or both at front and back. There is adequate space for fiber distribution and storage, as well as enough fiber winding trays. Hanging hooks, which are convenient for user to operate.
The direct splice area is specially equipped in the inside of the cabinet; the cables at two ends are connected in the direct splice area.
Our 19 inch Sliding Fiber Optic Patch Panel is good in quality and competitive in price. We manufacture kinds of Networking accessories with OEM, ODM service.
If you want more detailed information of this product or related problems, please contact with us feel free, we will give you the best solution in 24 hours.
Specifications :
| Material | Cold rolled steel for the box,ABS for the tray |
| Operating Temperature | -40°C~+60°C |
| Relative Humidity | <95%(+40°C) |
| Insulated resistance | ≥2x10MΩ/500V(DC) |
| Dimension | 19"x 1U |
| Module Slots | 1/2/3/4/5/6pieces 12 core splicing tray |
| Capacity | 24core (12core,24core,48core,72core,96core,144core is available) |
| Installation Method (in overstriking ) | Floor Standing / wall mounted / pole mounted / rack mounted / corridor mounted / mounted in cabinet |
