Product Details:
Payment & Shipping Terms:
|
| Material: | Cold-rolled Steel Plate Or Alloy | Adaptor: | SC/FC/LC |
|---|---|---|---|
| Capacity: | 12/24/48/72 Core | Dimensions: | 300x300x80mm |
| Weight(kg): | 5~20KG | Temperature: | -40°C~+60°C |
| IP Grade: | IP 65 | Color: | Black Or Grey |
Description:
The cabinet has the functions of optical fiber cable splice, distribution, splitter holding, storage and dispatch. It has great performance of resisting the open-air environment and can resist severe climatic changes and serious working environment. The protection grade reaches IP65.
The cabinet is shaped from high strength glass-fiber polyester (SMC) with excellent performance of mechanical durability, anti-erosion, aging resistance and lightweight.
Full module type design has the advantages of flexible deployment and convenient installation. It can meet the needs of numerous dilatations.
It has the advantages of small volume, large capacity of 288 cores. More than 11 pieces of optical cables can be entered.
High pedestal of the cabinet has the advantage of large space so as to ensure bigger curvature radius when the cable is inlet and facilitate installation, operation and construction. Cable fixing cover type that is applicable to common and ribbon optical cable can be adopted for cable reinforcement if required by user.
FC / SC / LC type adapters are adopted. The installed adapter has an oblique angle of 40" so as to prevent eyes from direct shining of arc light.
The frame has excellent earth system.
Flame-retardant material is adopted for plastic components in the cabinet
Temperatures: -5°C -- 60°C
Humidity: 90% at 30°C
Air Pressure: 70kPa – 106kPa
Technical Specifications:
The cabinet has good performance of sealing with a protection level of IP65.

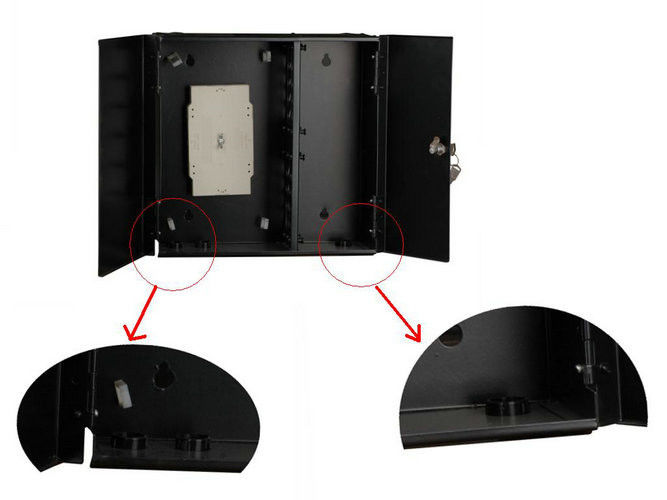

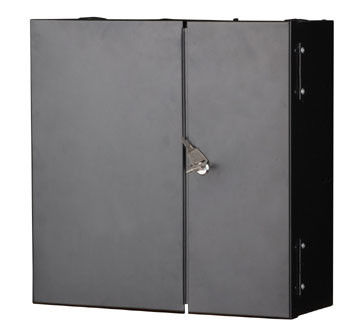

The cabinet is equipped with theft-proof lock, safety and reliability with good vandal-resistant function. The cabinet has flexible cable inlet and outlet structure and internal connecting structure. All operations are fully done at front.
Earth mode: the cabinet has two earth systems, one is protection earth by way of connecting the cable reinforcement with ground, and another is cabinet housing earth. The two earth systems are not connected with each other. They are separately connected with the ground of machinery house with their own earth wire.

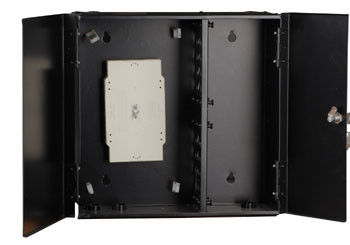

It is applicable to ribbon and common cable. The door of the cabinet can be equipped either only at front or both at front and back. There is adequate space for fiber distribution and storage, as well as enough fiber winding trays. Hanging hooks, which are convenient for user to operate.
The direct splice area is specially equipped in the inside of the cabinet; the cables at two ends are connected in the direct splice area.
Protection grade: IP65
Standard working wavelength: 850nm, 1310nm. 150nm
Pressurization: there is no breakdown or flashover when pressurization≥3000V (DC)/1 min between the metal work piece of the cabinet and earth device.
Insulation resistance: the insulation resistance between the metal work piece of the cabinet and earth device. ≥2x10MΩ/500V(DC)
Each surface of the C can be bear bear a vertical pressure>980N. The outermost part of the door can be bear a vertical pressure>200N when the door is open.
The fixing position of cable can be bear can be bear an axial tensile force 1000N,as well as three times of recyclable torsion of ±90°
The curvature radius>40mm
Our Services:
All of our goods will pass QUALITY INSPECTIONS before shipment.
Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
More than 22 years experience in in product production to make your order more smooth.
On time delivery, in general 10~15 days.
Multimode payment: T/T, Paypal,Western Union.
Special dimensions available according to request.
We have many certificates of our goods.
