Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1000X810X340mm | Capacity: | 1200&2400 Pair |
|---|---|---|---|
| Function: | Fixed Into Krone Module | Material: | Cold Rolled Steel |
| Environment: | Outdoor, Waterproof | Color: | Black Or Grey |
Quick Detail:
1. Can be with 1200pair and 2400pair capacity
2. Material: SMC also named Sheet Molding Compounds,unsaturated polyester reinforced with fiberglass.Waterproof: IP65
3. Floor Standing type,with installation accessory.
4. For LSA 10pair back mount modules,the mounting frame is included but the LSA module will be ordered separately.
5. With key and lock for secure, key lock.
6. Application:Ourdoor or indoor .Delivery Pack can be sepately or completely installed.
Description:

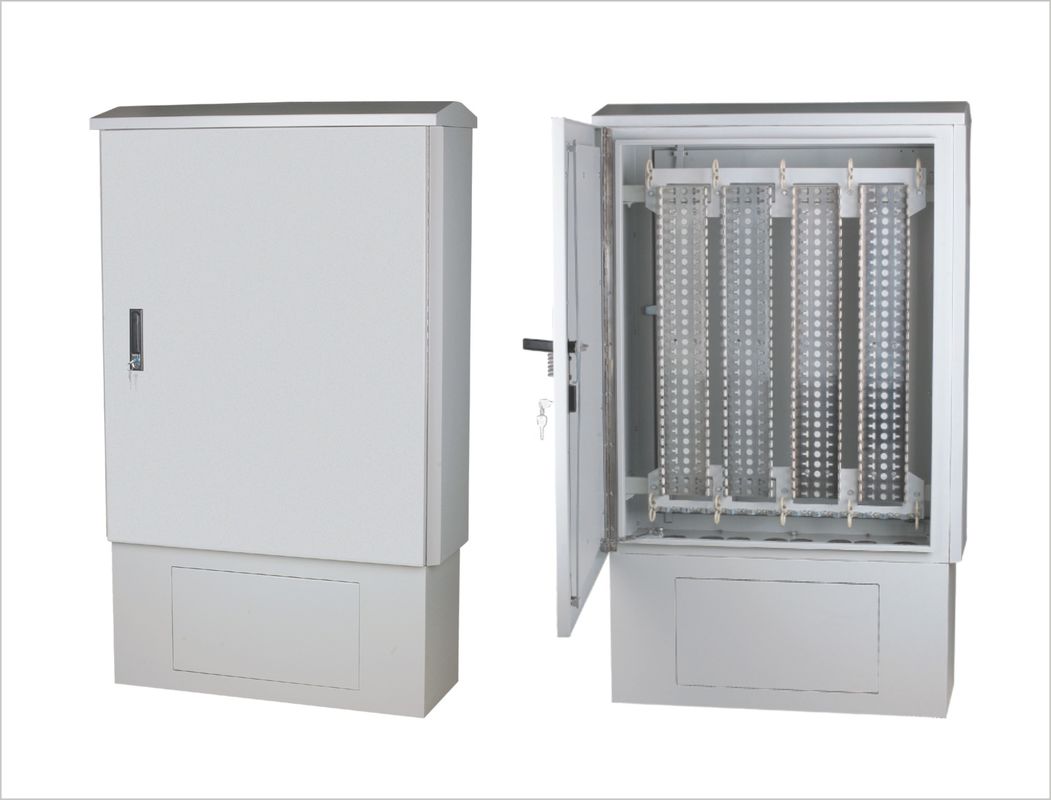

The Distribution Box is desired for cable / fiber distribution, made up of SMC (unsaturated polyester reinforced with fiberglass), molded under high pressure and temperature. It is composed by two parts, 1200pair and 2400pair capacity is available with this cabinet .Material cold-rolled steel is also available .
The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.
Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.
It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.
Applications:
For mounting to walls,wood,metal or concrete poled
Specifications :
|
Distribution Box: Standard with expansion bolt for mounted.T
|
|
| Material | SMC |
| Size |
Size for cabinet without bottom part: H=1000mm;W=810mm;D=340mm Size for bottom part: H=350mm;W=760mm;D=290mm |
| Waterproof Grade | IP65 |
| Capacity | 2400pair max. |
| Service tempreture | -40℃ to +60℃ |
| Serving Humidity | <95% (at +40℃) |
| Insulate resistance | 2X104 MΩ 500V (DC) |
| Impact strength | >980N on exterior surface; >200N on hinge |
