Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1100x500x150mm | Material: | SPCC |
|---|---|---|---|
| Capacity: | 680 Pair | Function: | Fixed Into Krone Module |
| Color: | Black Or Grey | Environment: | Outdoor, Waterproof |
Quick Detail:
1. Can be with 68 pieces 10pair modules
2. Material:Cold rolled steel.
3. Wall mounted type,with installation accessory.Standard pack for wall mounted.
4. For LSA 10pair back mount modules,the mounting frame is included but the LSA module will be ordered separately.
5. With key and lock for secure, key lock.
6. Application:Ourdoor or indoor
Description:
The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.
Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.
It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.
Applications:
For mounting to walls,wood,metal or concrete poled
Specifications :
|
Distribution Box Standard with expansion bolt for wall mounted.The accessories for pole mounted is on requirement.
|
|
| Item No | Description |
| YH-3014 | 340pair / 340Way DP box with back mount frame, Size: 1100mm*280mm*150mm |

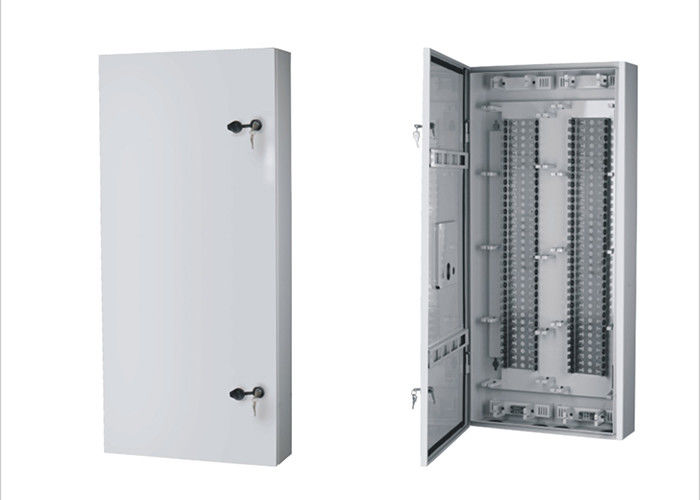

| YH-3015 | 680pair / 680 way DP box with back mount frame, Size:1100mm*500mm*150mm |
| YH-3016 | 1020pair /1020 way DP box with back mount frame, Size: 1100mm*720mm*150mm |
