Instrument Enclosures Metal Distribution Box Rack Cabinet with Frame 102 Way YH3016

China Instrument Enclosures Metal Distribution Box Rack Cabinet with Frame 102 Way YH3016 supplier
Instrument Enclosures Metal Distribution Box Rack Cabinet with Frame 102 Way YH3016 supplier Instrument Enclosures Metal Distribution Box Rack Cabinet with Frame 102 Way YH3016 supplier

Large Image :  Instrument Enclosures Metal Distribution Box Rack Cabinet with Frame 102 Way YH3016

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-3016

Payment & Shipping Terms:

Minimum Order Quantity: 50pieces
Price: negotiable
Packaging Details: 1piece/box
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200pieces/day
Contact Now
Detailed Product Description
Dimension: 1100x720x150mm Material: SPCC
Capacity: 1020 Pair Function: Fixed Into Krone Module
Color: Black Or Grey Environment: Outdoor, Waterproof

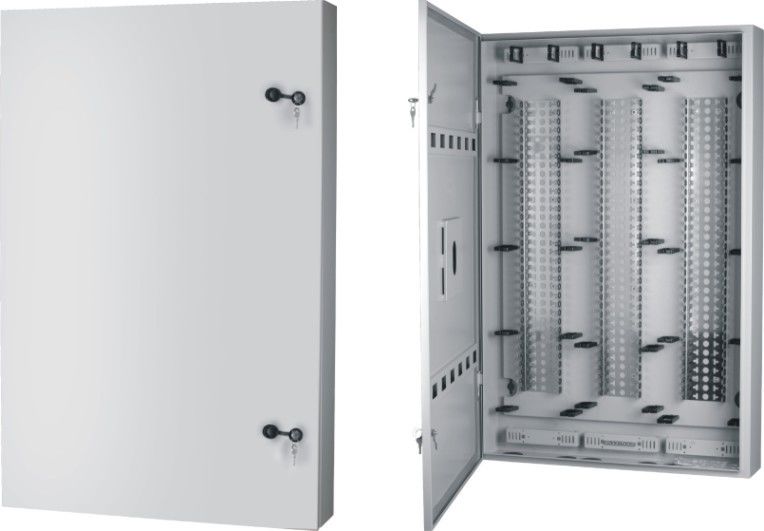

Instrument Enclosures Metal Distribution Box Rack Cabinet with Frame 102 Way YH3016



Quick Detail:



1. Can be with 102 pieces 10pair modules

2. Material:Cold rolled steel.

3. Wall mounted type,with installation accessory.Standard pack for wall mounted.

4. For LSA 10pair back mount modules,the mounting frame is included but the LSA module will be ordered separately.

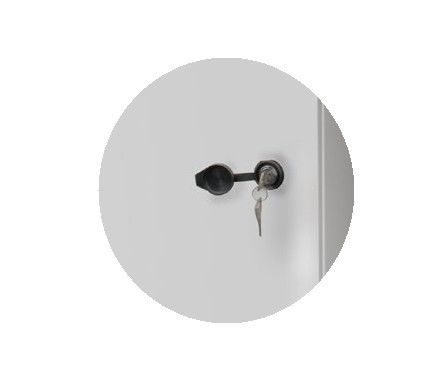

5. With key and lock for secure, key lock.

6. Application:Ourdoor or indoor





Description:



The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.



Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.



It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.

Applications:



For mounting to walls,wood,metal or concrete poled





Specifications :



Distribution Box Standard with expansion bolt for wall mounted.The accessories for pole mounted is on requirement.



Item No Description
YH-3014 340pair / 34Way DP box with back mount frame, Size: 1100mm*280mm*150mm
YH-3015 680pair / 68 way DP box with back mount frame, Size:1100mm*500mm*150mm
YH-3016 1020pair /102 way DP box with back mount frame, Size: 1100mm*720mm*150mm
