Place of Origin:
CHINA
Brand Name:
YUHUI
Certification:
ISO,RHOS,UL,CE
Model Number:
YH -1009
Quick Detail:
1. 19inch,1U (2U, 3U) is also offered.
2. Capacity 24 Core,with splicing tray,rack mounting type.
3. Made of Cold Rolled Steel, with excellent performance of mechanical durability, anti-erosion, aging resistance and dustproof,flame-retardant.
4. The panel is easy to be pulled and pushed.
5. FC / SC / LC type,SC duplex adapters are adopted.
6. Capacity for 12/24/48/72/96/144 core is available.
Description:

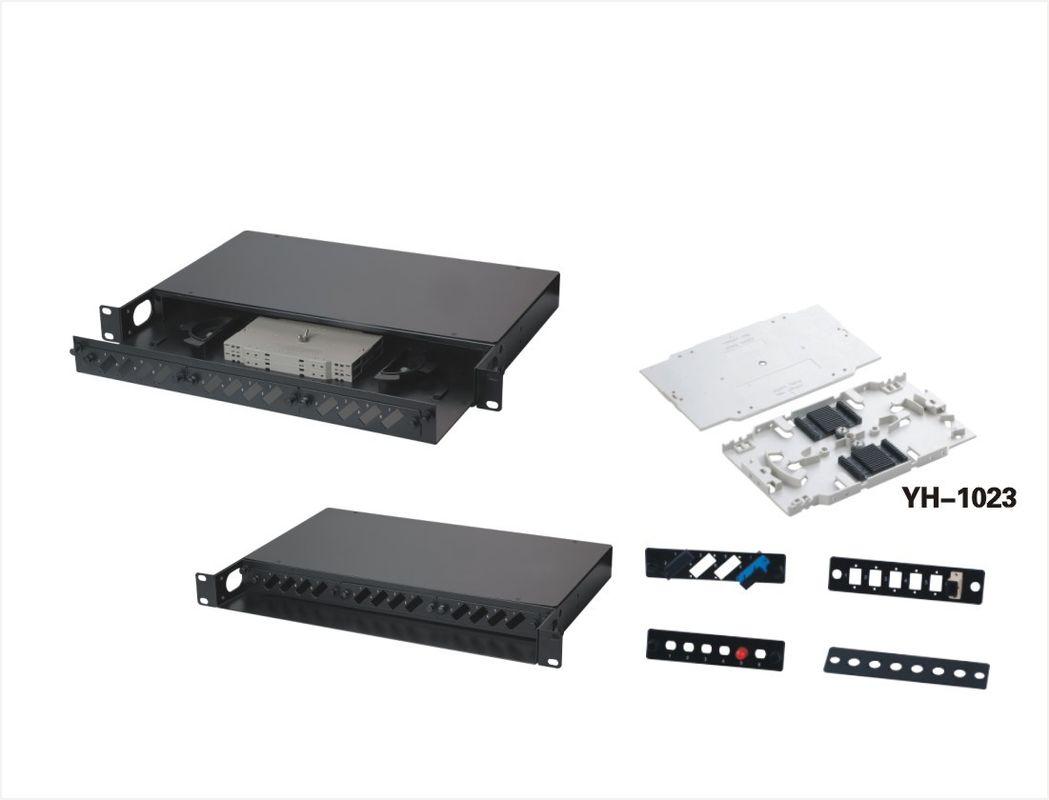

19 Inch Sliding Fiber Optic Patch Panel

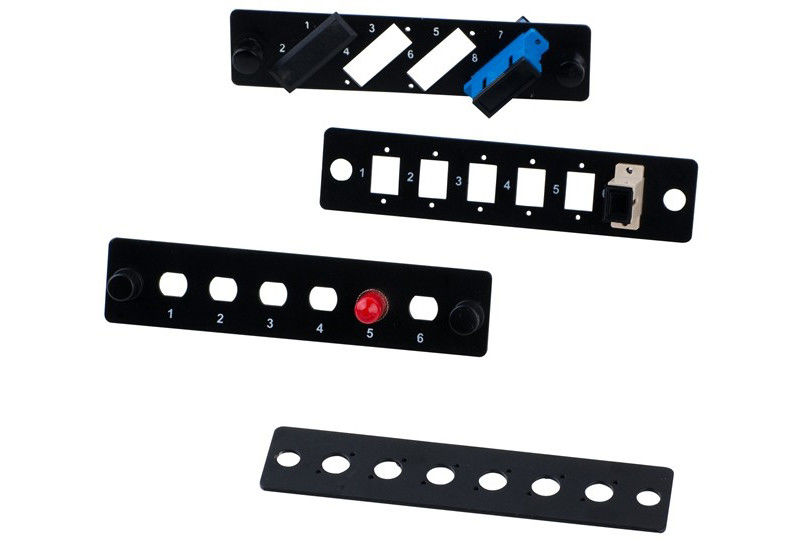

The removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors. The flexibility of its two piece construction allows you to maintain a stock of the chassis and then attach a suitable front panel as required.
SPECIFICATIONS:
Adoptable adapter types: FC, SC,LC/Duplex.
Applications:
Specifications :
| Material | Cold rolled steel for the box, ABS for the tray |
| Operating Temperature | -40°C~+60°C |
| Relative Humidity | <95%(+40°C) |
| Insulated resistance | ≥2x10MΩ/500V(DC) |
| Dimension | for 19" cabinet |
| Capacity | 24core (12core,24core,48core,72core,96core,144core is available) |
| Installation Method (in overstriking ) | Floor Standing / wall mounted / pole mounted / rack mounted / corridor mounted / mounted in cabinet |
