Place of Origin:
CHINA
Brand Name:
YUHUI
Certification:
ISO,RHOS,UL,CE
Model Number:
YH-1005
Quick Detail:
1. 19inch,1U (2U, 3U,4U) is also offered.
2. Capacity 24 Core,with splicing tray,rack mounting type.
3. Made of Cold Rolled Steel, with excellent performance of mechanical durability, anti-erosion, aging resistance and dustproof,flame-retardant.
4. The panel is easy to be pulled and pushed.
5. FC / SC / LC type,SC duplex adapters are adopted.
6. Capacity for 12/24/48/72/96/144 core is available.
Adoptable adapter types: FC, SC,LC/Duplex.
Description:

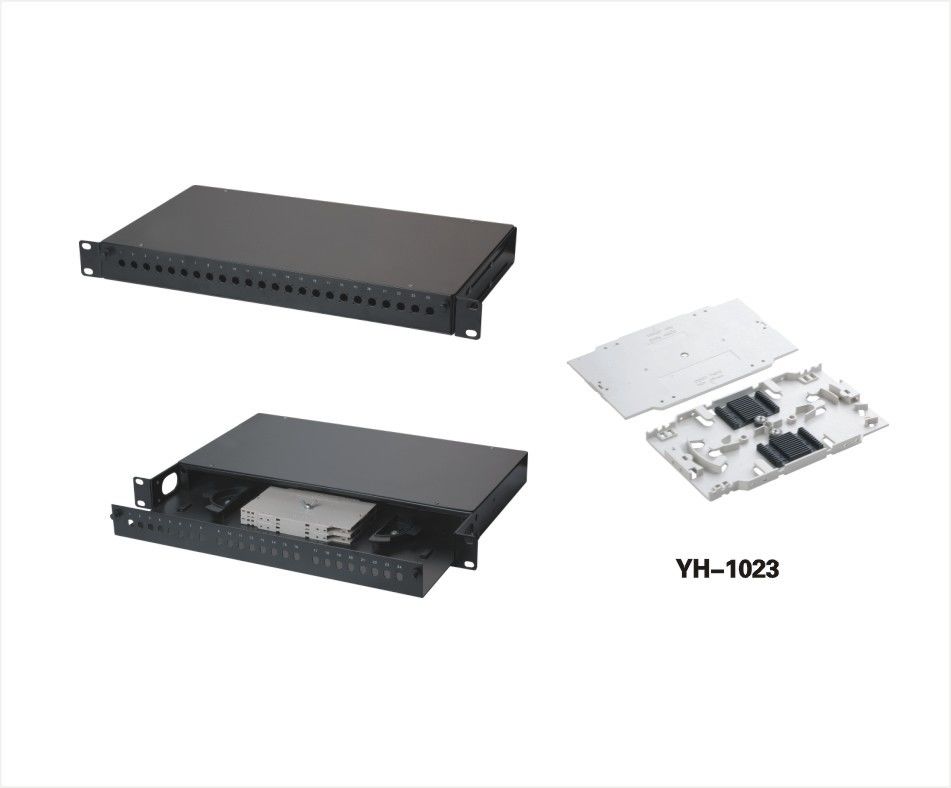

19 Inch Sliding Fiber Optic Patch Panel
The removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors. The flexibility of its two piece construction allows you to maintain a stock of the chassis and then attach a suitable front panel as required.
Technical Specifications:
The cabinet has good performance of sealing with a protection level of IP65.
The cabinet is equipped with theft-proof lock, safety and reliability with good vandal-resistant function. The cabinet has flexible cable inlet and outlet structure and internal connecting structure. All operations are fully done at front.
Earth mode: the cabinet has two earth systems, one is protection earth by way of connecting the cable reinforcement with ground, and another is cabinet housing earth. The two earth systems are not connected with each other. They are separately connected with the ground of machinery house with their own earth wire.
The direct splice area is specially equipped in the inside of the cabinet; the cables at two ends are connected in the direct splice area.
Protection grade: IP65
Standard working wavelength: 850nm, 1310nm. 150nm
Pressurization: there is no breakdown or flashover when pressurization≥3000V (DC)/1 min between the metal work piece of the cabinet and earth device.
Insulation resistance: the insulation resistance between the metal work piece of the cabinet and earth device. ≥2x10MΩ/500V(DC)
Each surface of the C can be bear bear a vertical pressure>980N. The outermost part of the door can be bear a vertical pressure>200N when the door is open.
The fixing position of cable can be bear can be bear an axial tensile force 1000N,as well as three times of recyclable torsion of ±90°
The curvature radius>40mm
Specifications :
MT-1005-A with panel for 24pcs SC Adaptor
MT-1005-B with panel for 12pcs Duplex SC Adaptor
MT-1005-C with panel for 24pcs ST Adaptor
MT-1005-D with panel for 24pcs FC Adaptor
The body of panel is easy to be pulled and pushed
Patch panel with 2 pcs splicing tray
Send your inquiry directly to us
