Product Details:
Payment & Shipping Terms:
|
| Material: | ABS,Carbon Steel | Color: | Green/Black |
|---|---|---|---|
| Connector: | Crimp AMP Picabond Connector | Application: | Splicing, Bridging, Tapping |
| Type: | Crimping Tools | Use On: | Rg59(4c) And Rg6(6c) |
Quick Detail:
1. Made of plastic and metal steel.
2. Special tool steel with solid performance
3. VS-3 tool kit for mini picabond connector blue,green types.
4. with a wire supports to position and holder
5. crimp AMP picabond connector in through tapping and bridging operations
6. cuts excess wire during the crimp cycle.
Description:

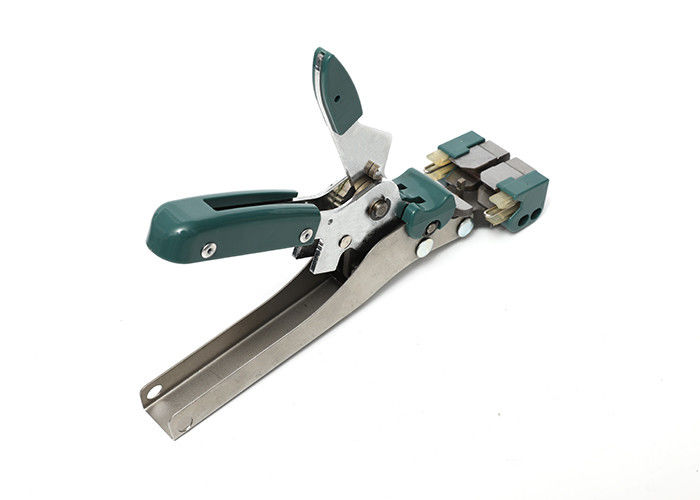

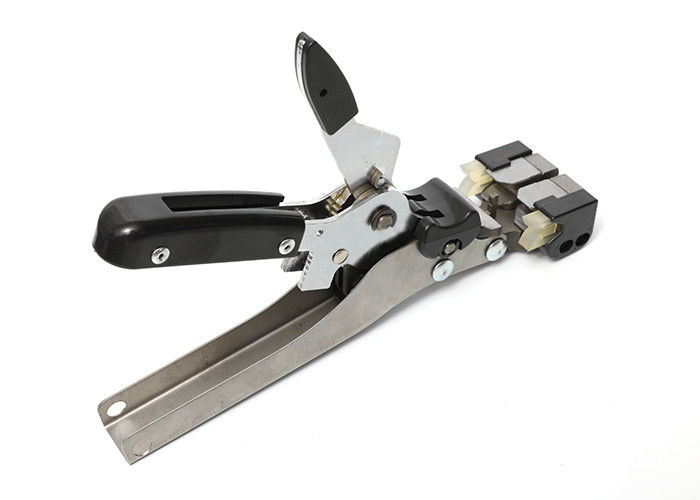

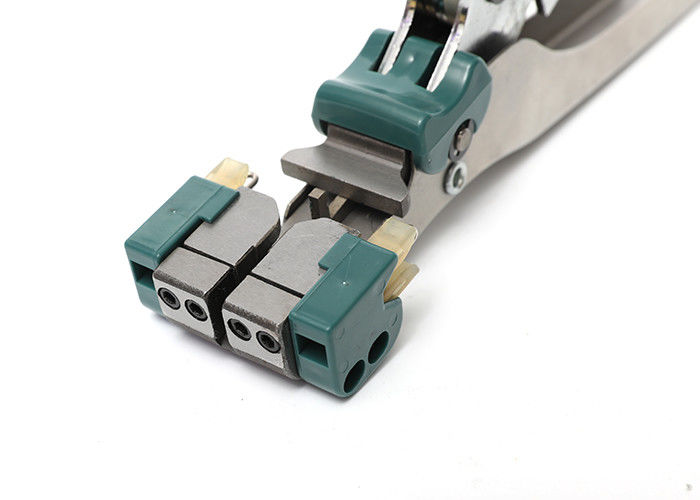

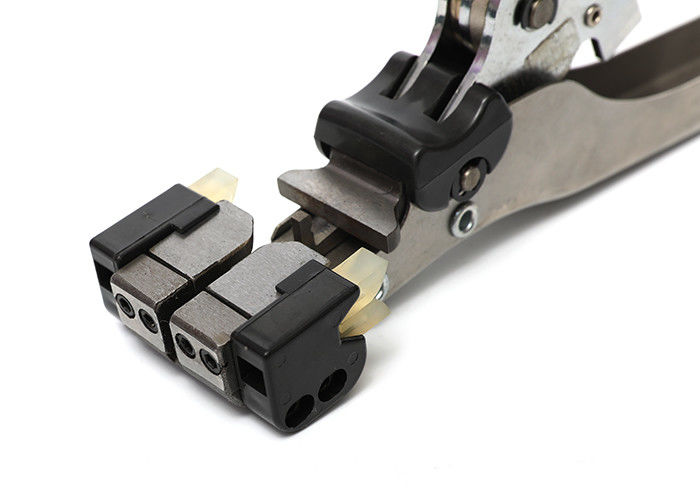

244271-1 hand crimping tool is designed to crimp AMP picabond connector in through tapping and bridging operations.It works well on joining the cable conductors(wires) using the AMP picabond connectors standard.The movable die and two fixed dies crimp the connectors,with a wire supports to position and hold the wires inthe crimpers.After location the connectors on the anvil,the wire cutter cuts excess wire during the crimp cycle.

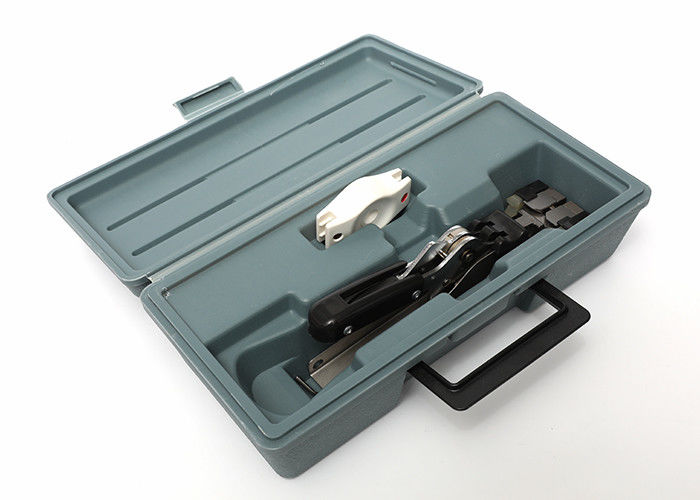

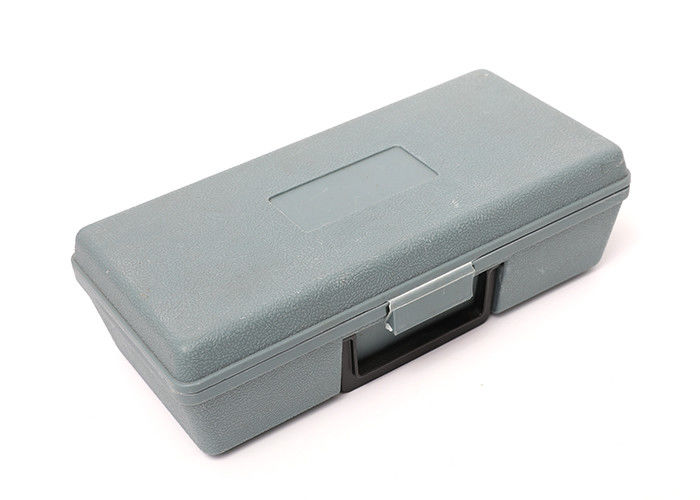

Packing: With instruction sheet 1pieces,assitant tool.
Connector crimping tool YH-8021 function as E-9Y 3M, UR,UY,UG
Connector crimper YH-8028 function as E-9BM 3M,for wire connector UY,UB,UR ,UG,U1B,U1R,U1Y, UDW,UDM, UAL, UBCO,UYCO,SUPER-MIN
With pressure sensor and extracting hook to free wires for soldering, screwing and skinning in preparation for connection and at the same time cutting off any excess length.
An IDC terminating tool for use on 10 pair Disconnection Strips 237A. It incorporates an extraction hook which assits in the removal of terminated wires.
64172055-01 KRONE LSA-PLUS RJ outlets.
The networking tools we can offer including sort of insertion tools, impact and punch down tool (Ericsson punch down tool, Siemens punch down tool, Corning punch down tool and so on), crimping tool(RJ45 crimping tools, coaxial cable crimping tool, picabond ratchet crimper), cable stripper and cutter, cable tester and connector removal tool, and so on.
In short, we offer the networking tools for cutting and stripping coaxial cable, twist cable, and optical fiber. And professional compression crimping tool for different connectors, insertion tools for different modules .To save cost for customers, we have desired some tools with multi-function. So you can keep one tool instead of several different types. Meanwhile, for some coaxial cable crimping tool you can change the head to fit the cable specification yourself. It will make you lose weight on tool set but to finish your work perfectly.
Applications:
For wire installation into network and telecommunication equipment.Indicated type for different module block MDF from kinds of communication companies,like Krone,Tyco, 3M,Corning, Ericsson, ZTE, HUAWEI, AMP and so on.Various products make the job more convenient and special.
