| Name: | Dropwire Connector 557TG | Feature: | Sealed Moisture-resistant |
|---|---|---|---|
| Color: | Black | Application: | Arial Dropwire Connector |
| Crimping Tool: | E-9BM YH-8028 | Wire Dia.: | 22-16AWG |

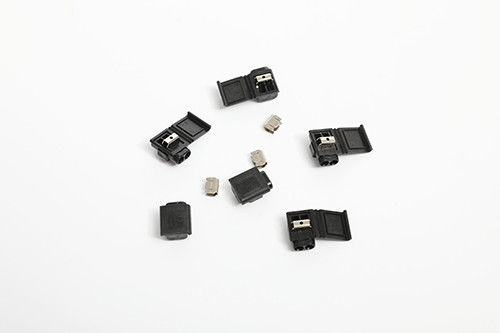

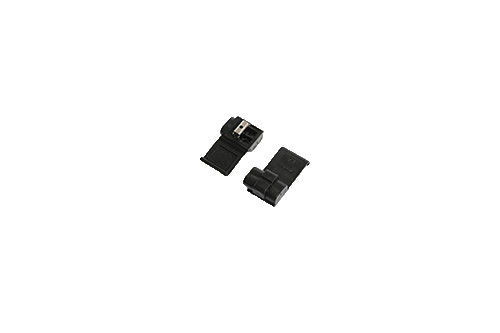

Sealed Moisture Resistant Wire Splice Connector , Self - Stripping Aerial Dropwire Connector 557TG
Quick Detail:
1. 557TG dropwire connector made of polycarbonate
2. wire range of 0.6-1.3 mm (22-16 AWG)
3. insulation outside diameter up to 3.0 mm
4. Color:Black
5. With gel or without gel on option
6. Crimping tool YH-8028(3M item no.E-9BM) .
7.Aerial dropwire connector for two solid copper conductors connection
Description:
3M Scotchlok Self-Stripping Dropwire Connector 557TG,it is mainly used the 557TG aerial dropwire connector to electrically connect two solid copper conductors,it offers to insulate the connection and provide moisture protection.
3M type wire connectors includes a variety of butt splices ,inline tap splices,dropwire connector.
The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to the wire. A "LIVING-SPRING" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.
The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture.
Inline and drop wire connectors can only be used with hand crimping tool YH-8028(3M item no.E-9BM) ,Yh-8021 crimping tool (3M item no.E-9Y) for your option.
Various insulation displacement connectors to cat.5 compliance,dry or gell-filled on sales:
AMP picabond connector (green and blue) is on sales, with package in roll which is more convenient for operation.With crimpting tool YH-244271-1
Applications:
3M type wire connectors, UY connector, UY2 connector, UR connector, UB connector, UG connector and UDW2 connector are all available on sales. This wire connectors are used to connect two wires safely and fast with gel filling inside, which is moisture proof.
Specifications :
| UR connector | Gel filled for moisture resistance and for PIC cable applications, filled or unfilled. It accepts two or three wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 1.52 mm/.060". It is made of polycarbonate and is Cat. 5 compliant. |
| UY connector | Gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled. It accepts two wires within wire range of 0.4-0.7 mm (26-22 AWG) and insulation outside diameter up to 1.52 mm/.06". It is made of polycarbonate and is Cat. 5 compliant. |
| UY2 connector | gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled.It accepts two wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 2.08 mm/.082". It is made of polypropylene and is Cat. 5 compliant. |
| UDW2 Connector |
is a four wire (one full pair) aerial inline drop-wire connector for copper or copper coated steel conductors. It is used for mid-span splices where strain relief is provided. Gel filled for moisture resistance and for PIC cable applications, it accepts conductors within wire range of 0.9-1.3 mm (19-16 AWG) and insulation outside diameter up to 4.4 mm/.175". It is made of polycarbonate.
|
| UG connector |
allows direct tapping into existing plastic insulated solid copper conductors without interrupting service. It is gel filled for moisture resistance and for PIC cable applications, filled or filled. It accepts conductors within wire range of 0.4-0.9 mm (26-19 AWG) tap and 0.4-0.7 mm (26-22 AWG) run wire with insulation outside diameter up to 1.54 mm/.061" tap and 1.12 mm/.044" run wire. It is made of polycarbonate.
|
3M Scotchlok Connectors And Tools made great progression to the high-speed and high-bandwidth networks.The Products are widely used in the world Network region. With the Scotchlok series of tools and connectors from 3M, service providers can meet the demand for enhanced customer services such as high speed internet, video-on-demand and video conferencing.For the main products 3M Scotchlok Butt Connector UR,3M Scotchlok Butt Connector UR2,3M Scotchlok Butt Connector UY,3M Scotchlok Butt Connector UY2,3M Scotchlok Butt Connector UAL,3M Scotchlok Tap Connector UG,3M Scotchlok Tap Connector UB,3M Scotchlok Inline Connector U1B,3M Scotchlok Inline Connector U1R,3M Scotchlok Inline Connector UDW2,3M Scotchlok Crimping Tool E-9BM (YH-8028),3M Scotchlok Crimping Tool E-9Y(YH-8021).
