Product Details:
Payment & Shipping Terms:
|
| Material: | ABS | Category: | 25 50 100 Pair Can Be Chosen |
|---|---|---|---|
| Color: | Ivory | The IDC Block: | For 4pairs And 5pairs. |
| Application: | Network | IDC Contract Material: | Phosphor Bronze With Tin Plating Over Nickel |
Quick Detail:

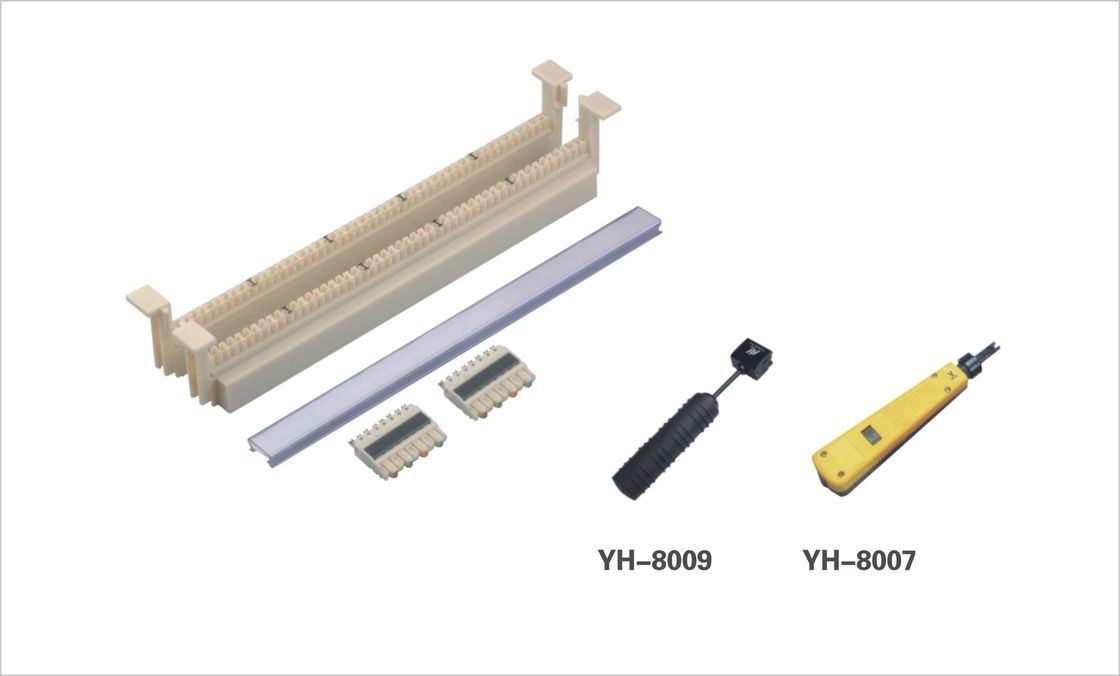

1. 110 wire block with leg and without leg
2. IDC contract material : phosphor bronze with tin plating over nickel
3. The module YH-5030 is offerred with 50pair and 100pairs, with legs or without legs .
4.The IDC block is for 4pairs and 5pairs.
5.Punch Down Tools YH-8009 and YH-8007 is available.
Description:
Patch Panel (also called as 110 distribution frame) is a basic component among 110 blocking cross-connect system, which includes all kinds of types, specifications and wiring distribution.
2. The module YH-5030 is offerred with 50pair and 100pairs, with legs or without legs .
3.The IDC block is for 4pairs and 5pairs.
Punch Down Tools YH-8009 and YH-8007 is available.
We are professional patch panel manufacturer in China. Our patch panel includes voice type 25port and 50port, data type(cat.5e,cat.6, cat.6a) with 6port 12port 24port 48port and 72port on option. We use good PCD board and IDC connectors (krone IDC, 110 IDC, Dual IDC for option) to ensure the characters for each product. Specially for 24port Cat5e.UTP patch panel ,we offer not only in flat configuration as normal but also offer angel patch panels configuration.
The patch panel is offered universal wiring both T568A and T568B,color Coded TIA/EIA 568a and 568b Wiring For Easy Installation.Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires.Meet or exceed the requirement of ANSI /TIA/EIA 568B.2. We will do the Fluke test before sending you our products.
Each patch panel will be packed firstly with a plastic bag and then a firm inner box.Colorful inner box OEM is available.Usually we use a natural brown box for most of the clients.The patch panel we sell annual amount above 10000peices over the world.
Applications:
Network communication,LAN cabling network,Computer center
Specifications :
| YUHUI Voice and Data Patch panel | |
| IDC | Silver plated in the surface of the contact conductor |
| Insulation resistance | 1000 Mohms minimum |
| Copper conductor | 0.4-0.7mm( 22-26 AWG Solid wire) |
| Contact resistance | 7 mohms maximum |
| Dielectric intensity | AC 1000 Vrms 50Hz or 60Hz in 60s |
| Storage Temperature | -40 to 70° C |
| Operating Temperature | -10 to 60° C |
| Relative Humidity | 95%, noncondtion |
| Design to mount | Any standard 19" rack or cabinet (and 10inch type) |
| Space saving | high-density 1U (24 port ,48port ,25port,50port available). |
