Faceplate Telecommunication Module Cat5e Rj45 Keystone Jack Inline Coupler

China Faceplate Telecommunication Module Cat5e Rj45 Keystone Jack Inline Coupler supplier

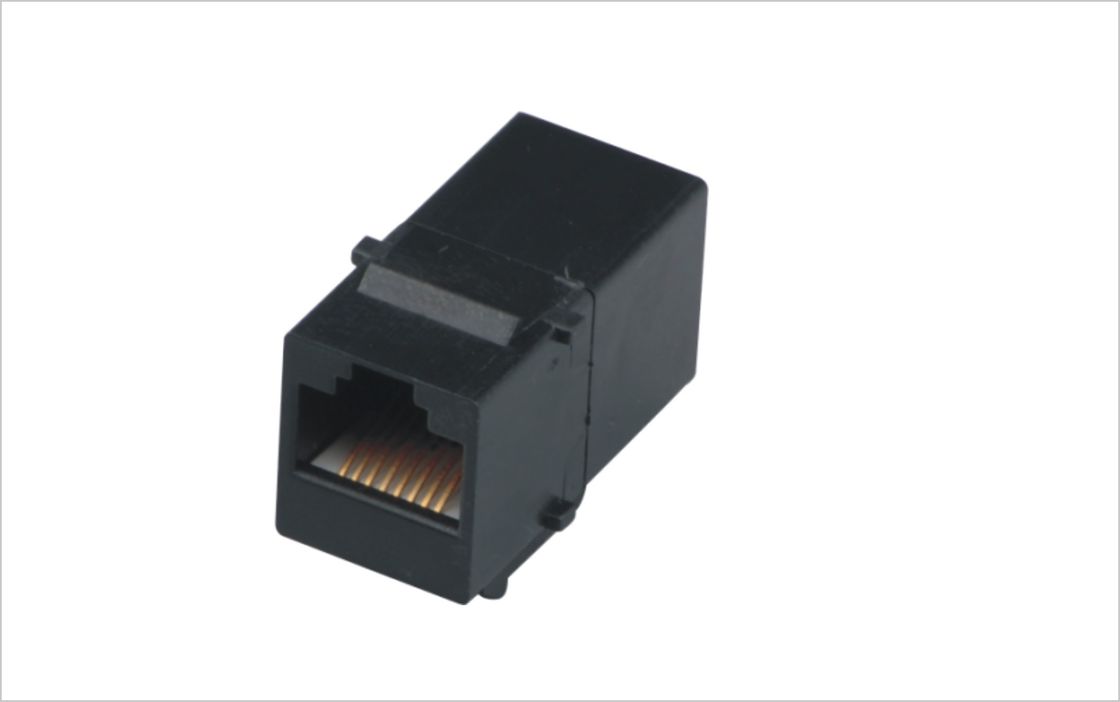

Large Image :  Faceplate Telecommunication Module Cat5e Rj45 Keystone Jack Inline Coupler

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-7005

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pieces
Price: negotiable
Packaging Details: 200 piece/box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces/day
Contact Now
Detailed Product Description
Material: Polycarbonate Support, ABS Jack (UL94V-0) Color: Black
Application: Network Type: UTP/STP/FTP
Connector: 110 IDC , Krone IDC, Dual IDC Specification: Cat5, Cat.5e, Cat.6, Cat.6a

Cat.5e RJ45 Module Network Keystone Jack inline coupler for the faceplate YH7005

Quick Detail:


1. Industry standard modular 'Keystone' dimensions

2. 110 IDC,Dual IDC,Krone IDC termination

3.Black and white color for unshielded,metal for shielded screened.

3. TIA/EIA 568A and 568B wiring options

4. Module material - Polycarbonate Support, ABS Jack (UL94V-0)

5. Wire gauge 22-24 AWG,easy operation

6. Cat.3 Cat5e Cat.6 and cat.6A on option,shielded and unshielded keystone jack types.




The feedthrough in-line coupler modules are 8-position 8-conductor (8P8C), Category 5e (CAT5e),Category 6 (CAT6), unshielded type or shielded with metal housing.connect two modular cords; Pin 1 to Pin 1.You can make connection with patch cords when you find the situation that the cord is not long enough to your place.Or you can use this module inline coupler on the faceplate .





ROHS complied.


With compact size, integral shutter, keystone mounting format a, our keystone Jack for voice and Category 5e and 6A ensure a smart, reliable installation. All copper conductors are plated with gold. The 8 pins of RJ45 tool-less keystone jack are effortlessly terminated in one simple operation resulting in reliable interconnection in record time. The jacks can be reused several times if a wiring mistake is made.


Cat.3 Rj11 keystone module,Cat.5e flush mount keystone,Cat.6 high performance jack outlet,Cat.6A RJ45 module connector,UTP and FTP keystone jack, toolless insertion keystone jack on option.


What is more, there are exact suited blank patch panel, face plate and surface mount box to use together with our keystone jack. In this case, you can make the whole link with better characters.





Compatible with YH Faceplates
Compatible with YH Surface Mount Boxes
Compatible with YH Snap-in Patch Panels



Specifications :


Electrical Contact Resistance:110 Mohs MAX.
Insulation Resistance:1 000 megohms MIN 500 VDC
Dielectric Strength :750 VAC RMS 60Hz ,1 MIN
Environment Storge: -40~ 85°c
Operation: 0~70°c
Machanical Housing Material: PBT-UL90V-0 or ABS
180 degree for Cabling and 90 degree for cabling
Contact Material: PC-UL90V-0
Contact: Phosphor Bronze with Nickel Plating
RJ45 Jack:IFE:750 times MIN.
IDC Life :200 times MIN.
Wire:AWG 24-26
Cat.3 Cat5e Cat.6 and cat.6A on option
Retentiveness of insertion structure:50N 60±5s
