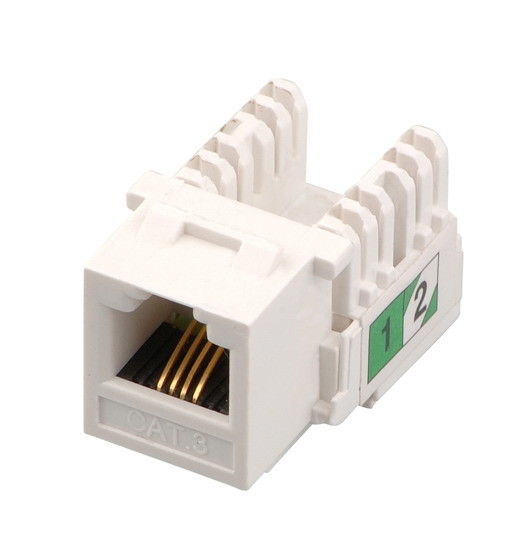

White Idc Telecommunication Module Network Toolless Keystone Jack Yh7002

China White Idc Telecommunication Module Network Toolless Keystone Jack Yh7002 supplier

Large Image :  White Idc Telecommunication Module Network Toolless Keystone Jack Yh7002

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-7002

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pieces
Price: negotiable
Packaging Details: 500 piece/box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces/day
Contact Now
Detailed Product Description
Material: Polycarbonate Support, ABS Jack (UL94V-0) Color: White
Specification: Cat5, Cat.5e, Cat.6, Cat.6a Connector: 110 IDC , Krone IDC, Dual IDC
Type: UTP/STP/FTP Toolless: Yes

Telecommunication IDC Keystone Jack / Network Toolless Keystone Jack YH7002

Quick Detail:


1. Industry standard modular 'Keystone' dimensions

2. 110 IDC termination

3. TIA/EIA 568A and 568B wiring options

4. Module material - Polycarbonate Support, ABS Jack (UL94V-0)

5. Wire gauge 22-24 AWG,easy operation

6. Cat.3 Cat5e Cat.6 and cat.6A on option,shielded and unshielded types.






Cat.3 6P4C Keystone Jack with Terminal Block


With compact size, integral shutter, keystone mounting format a, our keystone Jack for voice and Category 5e and 6A ensure a smart, reliable installation. All copper conductors are plated with gold. The 8 pins of RJ45 tool-less keystone jack are effortlessly terminated in one simple operation resulting in reliable interconnection in record time. The jacks can be reused several times if a wiring mistake is made.


Cat.3 Rj11 keystone module,Cat.5e flush mount keystone,Cat.6 high performance jack outlet,Cat.6A RJ45 module connector,UTP and FTP keystone jack, toolless insertion keystone jack on option.


What is more, there are exact suited blank patch panel, face plate and surface mount box to use together with our keystone jack. In this case, you can make the whole link with better characters.





Compatible with YH Faceplates
Compatible with YH Surface Mount Boxes
Compatible with YH Snap-in Patch Panels



Specifications :


Electrical Contact Resistance:110 Mohs MAX.
Insulation Resistance:1 000 megohms MIN 500 VDC
Dielectric Strength :750 VAC RMS 60Hz ,1 MIN
Environment Storge: -40~ 85°c
Operation: 0~70°c
Machanical Housing Material: PBT-UL90V-0 or ABS
180 degree for Cabling and 90 degree for cabling
Contact Material: PC-UL90V-0
Contact: Phosphor Bronze with Nickel Plating
RJ45 Jack:IFE:750 times MIN.
IDC Life :200 times MIN.
Wire:AWG 24-26
Cat.3 Cat5e Cat.6 and cat.6A on option
Retentiveness of insertion structure:50N 60±5s
