Place of Origin:
CHINA
Brand Name:
YUHUI
Certification:
ISO,RHOS,UL,CE
Model Number:
YH-7008
Quick Detail:
1. Industry standard modular 'Keystone' dimensions
2. 110 IDC,Dual IDC,Krone IDC termination
3. TIA/EIA 568A and 568B wiring options
4. Module material - Polycarbonate Support, ABS Jack (UL94V-0)
5. Wire gauge 22-24 AWG,easy operation
6. Cat.3 Cat5e Cat.6 and cat.6A on option,shielded and unshielded keystone jack types.
Description:

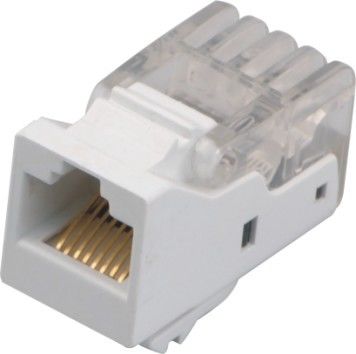

Cat.3 6P4C Keystone Jack with Terminal Block
With compact size, integral shutter, keystone mounting format a, our keystone Jack for voice and Category 5e and 6A ensure a smart, reliable installation. All copper conductors are plated with gold. The 8 pins of RJ45 tool-less keystone jack are effortlessly terminated in one simple operation resulting in reliable interconnection in record time. The jacks can be reused several times if a wiring mistake is made.
Cat.3 Rj11 keystone module,Cat.5e flush mount keystone,Cat.6 high performance jack outlet,Cat.6A RJ45 module connector,UTP and FTP keystone jack, toolless insertion keystone jack on option.
What is more, there are exact suited blank patch panel, face plate and surface mount box to use together with our keystone jack. In this case, you can make the whole link with better characters.
Applications:
Compatible with MT Faceplates
Compatible with MT Surface Mount Boxes
Compatible with MT Snap-in Patch Panels
Specifications :
| Electrical | Contact Resistance:110 Mohs MAX. |
| Insulation Resistance:1 000 megohms MIN 500 VDC | |
| Dielectric Strength :750 VAC RMS 60Hz ,1 MIN | |
| Environment | Storge: -40~ 85°c |
| Operation: 0~70°c | |
| Machanical | Housing Material: PBT-UL90V-0 or ABS |
| 180 degree for Cabling and 90 degree for cabling | |
| Contact Material: PC-UL90V-0 | |
| Contact: Phosphor Bronze with Nickel Plating | |
| RJ45 Jack:IFE:750 times MIN. | |
| IDC Life :200 times MIN. | |
| Wire:AWG 24-26 | |
| Cat.3 Cat5e Cat.6 and cat.6A on option | |
| Retentiveness of insertion structure:50N 60±5s |
