Rack Mount Fiber Optic Patch Panel 24 Core Cold Rolled Steel Material Yh1004

China Rack Mount Fiber Optic Patch Panel 24 Core Cold Rolled Steel Material Yh1004 supplier
Rack Mount Fiber Optic Patch Panel 24 Core Cold Rolled Steel Material Yh1004 supplier Rack Mount Fiber Optic Patch Panel 24 Core Cold Rolled Steel Material Yh1004 supplier

Large Image :  Rack Mount Fiber Optic Patch Panel 24 Core Cold Rolled Steel Material Yh1004

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-1004

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: 1 pcs/box
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per day
Contact Now
Detailed Product Description
Material: Cold-rolled Steel Adaptor: SC/FC/LC
Capacity: 12/24/48/72 Core Dimensions: 19"x1U
Temperature: -40°C~+60°C IP Grade: IP65
Color: Gray Or Black Item Name: Rack Type Fiber Optic Patch Panel

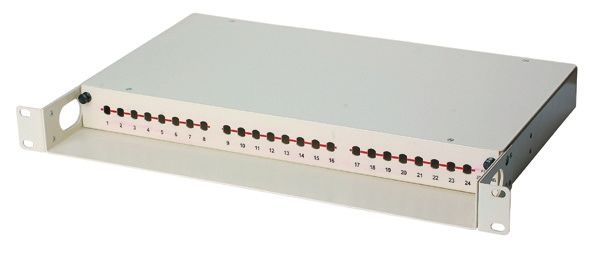

SC / FC / ST / LC Rack Mount Fiber Optic Patch Panel 24 Core Cold Rolled Steel Material YH1004

12 24 48 core indoor Wall mount ODF fiber optic cabinet termination box



MT-1004-A with panel for 24pcs SC Adaptor



MT-1004-B with panel for 12pcs Duplex SC Adaptor



MT-1004-C with panel for 24pcs ST Adaptor



MT-1004-D with panel for 24pcs FC Adaptor



The body of panel is easy to be pulled and pushed

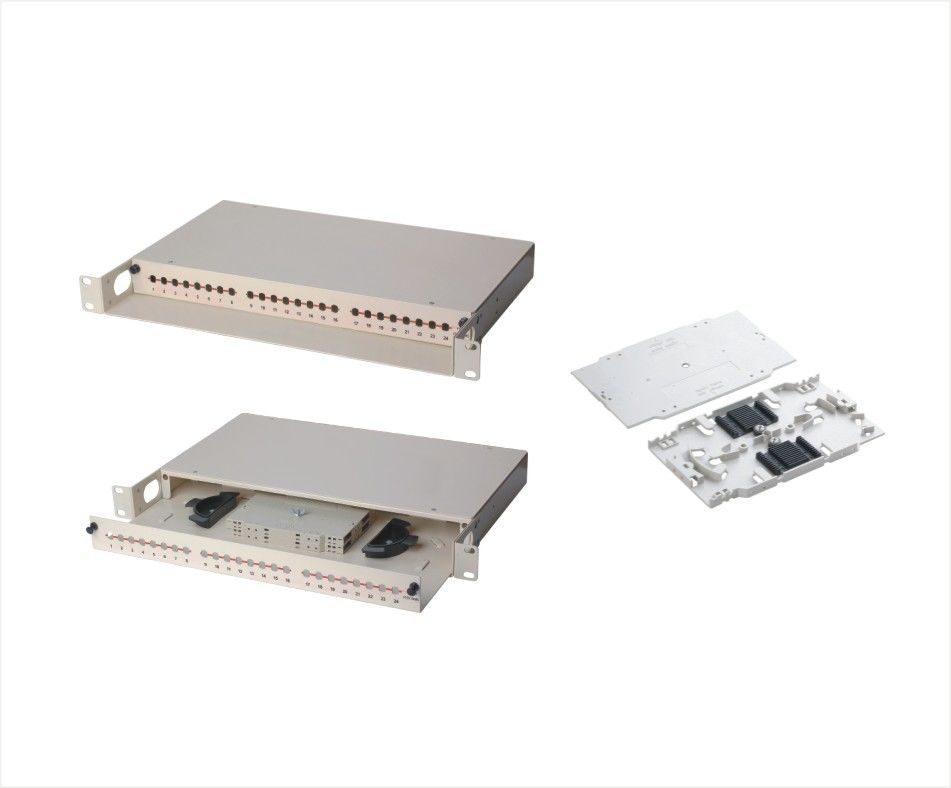

Patch panel with 2 pcs splicing tray

Specifications

1. Environment temperature:-25℃~+45℃
2. Relative humidity:≤85%(30℃)
3. Atmosphere pressure:70~106KPa
4. Insulated Resistance:≥2×10MΩ/500V(DC)
5. Intensity≤15KV(DC)/1minno spark-over and no flying arc
6. Fiber bending radium guaranteed more than 40mm:≥40mm
7. Material: Cold rolled steel
8. High quality finish,without sharp edges.
9. With changeable panel for duplex or simplex adapter,easily combination with your real application.


Adoptable adapter types: FC, SC,LC/Duplex.



Description:



19 Inch Sliding Fiber Optic Patch Panel

The removable front panels chassis is a 19 inch 1U sliding panel in two parts: one sliding chassis and one front panel, which receives the optical adaptors. The flexibility of its two piece construction allows you to maintain a stock of the chassis and then attach a suitable front panel as required.



Technical Specifications:


The cabinet has good performance of sealing with a protection level of IP65.

The cabinet is equipped with theft-proof lock, safety and reliability with good vandal-resistant function. The cabinet has flexible cable inlet and outlet structure and internal connecting structure. All operations are fully done at front.


Earth mode: the cabinet has two earth systems, one is protection earth by way of connecting the cable reinforcement with ground, and another is cabinet housing earth. The two earth systems are not connected with each other. They are separately connected with the ground of machinery house with their own earth wire.


It is applicable to ribbon and common cable. The door of the cabinet can be equipped either only at front or both at front and back. There is adequate space for fiber distribution and storage, as well as enough fiber winding trays. Hanging hooks, which are convenient for user to operate.


The direct splice area is specially equipped in the inside of the cabinet; the cables at two ends are connected in the direct splice area.


Protection grade: IP65

Standard working wavelength: 850nm, 1310nm. 150nm

Pressurization: there is no breakdown or flashover when pressurization≥3000V (DC)/1 min between the metal work piece of the cabinet and earth device.

Insulation resistance: the insulation resistance between the metal work piece of the cabinet and earth device. ≥2x10MΩ/500V(DC)

Each surface of the C can be bear bear a vertical pressure>980N. The outermost part of the door can be bear a vertical pressure>200N when the door is open.

The fixing position of cable can be bear can be bear an axial tensile force 1000N,as well as three times of recyclable torsion of ±90°

The curvature radius>40mm
