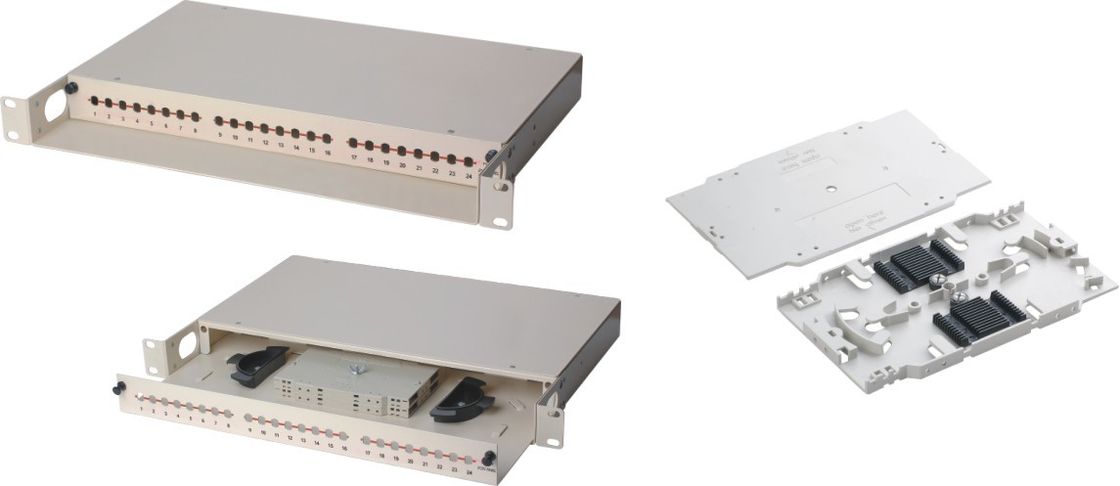

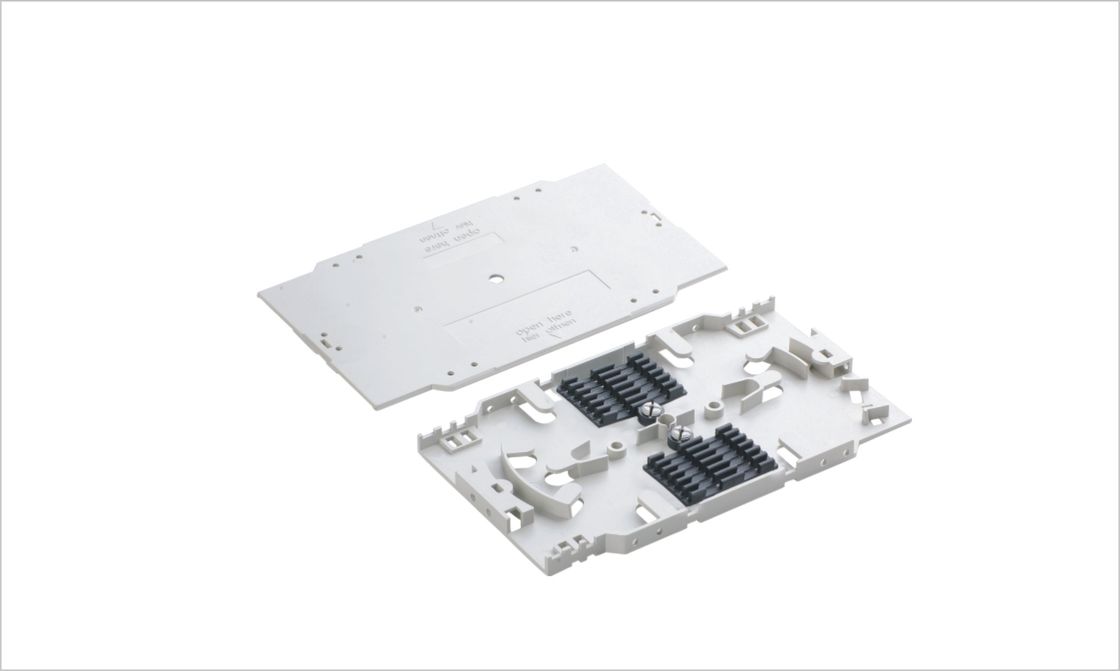

12 Core Stackable ABS Fiber Optic Splicing Tray / Fusion Splice Tray With Sleeve Slot YH1024

China 12 Core Stackable ABS Fiber Optic Splicing Tray / Fusion Splice Tray With Sleeve Slot YH1024 supplier
12 Core Stackable ABS Fiber Optic Splicing Tray / Fusion Splice Tray With Sleeve Slot YH1024 supplier 12 Core Stackable ABS Fiber Optic Splicing Tray / Fusion Splice Tray With Sleeve Slot YH1024 supplier

Large Image :  12 Core Stackable ABS Fiber Optic Splicing Tray / Fusion Splice Tray With Sleeve Slot YH1024

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-1024

Payment & Shipping Terms:

Minimum Order Quantity: 1000pieces
Price: negotiable
Packaging Details: cartons and PU box, 1piece/bag
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 per week
Contact Now
Detailed Product Description
Material: ABS OEM: YUHUI
Color: Light Grey Capacity: For 12core Or 24core
Use For: Fiber Management Used With: YH Patch Panel,closure

12 Core Stackable ABS Fiber Optic Splicing Tray / Fusion Splice Tray With Sleeve Slot



Quick Detail:



1. Made of ABS material.

2. Used in Wall mounted closures, or patch panels

3. Light weight and compact.

4. The base and cover of the box adopts self-clip method, which is easy and convenient to open and close.

5. each piece with 12 cores or 24 cores capacity

6. You can choose pieces to your equipment,this optical tray can be stakable

7. Easy for installation, termination and movement.





Description:





12 core Stackable fiber optic splicing tray, upturned splice tray



Fiber optic splice tray is desired for optic fiber management, to provide a location for storage and protection to the fiber optical cable and splices, easy for installation, termination and movement.

The splice tray expands fiber splice capabilities as well as provides the splicing location for fiber optic cables. The fiber guild route supports a good protection when we place the balance fibers in good band ratio.

Use for single-mode or multimode fiber

Durable injection-molded plastic trays and covers

Center holes for mounting of the tray

12-fiber and 24-fiber splice trays are available in Wall Mounted enclosures & splice closures



Product’s Description

1. Capacity: 12core or 24 core

2. Crooked sleeve slot, well fixed

3. Removable splice module

4. Material: ABS

5. Color: Grey

6, Dimension: 154 x 92 x 10 mm



You can order the YH-1037 splicing Heat fusion sleeves(fusion splice protections) as well.There is types for your option



YH-1037-A for 40mm splicing sleeves


YH-1037-B for 50mm splicing sleeves



YH-1037-C for 60mm splicing sleeves



Applications:

  • FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.Provide fusion and storage appliance for optical cables,for indoor fiber optic cable distribution.



Specifications :



Material ABS for the tray
Operating Temperature -40°C~+60°C
Relative Humidity <95%(+40°C)
Insulated resistance ≥2x10MΩ/500V(DC)
Capacity 12core or 24core
Installation Method (in overstriking ) mounted in enclosures,patch panels and cabinets




12 Core Stackable ABS Fiber Optic Splicing Tray / Fusion Splice Tray With Sleeve Slot YH1024
