Insulation Displacement UG Wire Splice Connector for 0.4mm - 0.9 mm Cable Green HJKT5

China Insulation Displacement UG Wire Splice Connector for 0.4mm - 0.9 mm Cable Green HJKT5 supplier

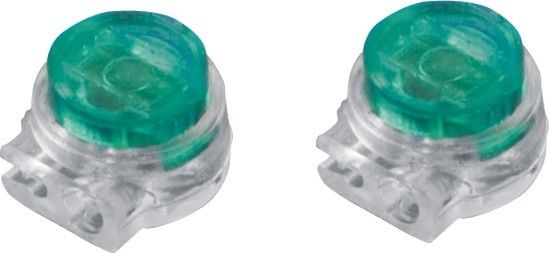

Large Image :  Insulation Displacement UG Wire Splice Connector for 0.4mm - 0.9 mm Cable Green HJKT5

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO9001
Model Number: HJKT5, UG

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs/bag
Price: negotiable
Packaging Details: cartons and PU box
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs per week
Contact Now
Detailed Product Description
OEM: YUHUI Material: PolycarbonateI
Color: Green Crimping Tool: YH-8021 YH-8028
Max Insulation D: 1.54mm Wire Dia: 0.4-0.9mm

Insulation Displacement UG Wire Splice Connector for 0.4mm - 0.9 mm Cable Green HJKT5

Quick Detail:


1. UG connector made of polycarbonate

2. wire range of 0.4-0.9 mm (26-19 AWG)

3. insulation outside diameter up to 1.54 mm

4. Color:Green

5. With gel or without gel on option

6. Crimping tool YH-8028(3M item no.E-9BM) ,YH-8021 crimping tool (3M item no.E-9Y)



Description:


3M type wire connectors includes a variety of butt splices and inline tap splices.The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to each wire. A "live-spring" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.


The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.

Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.


Various insulation displacement connectors to cat.5 compliance,dry or gell-filled on sales:

AMP picabond connector (green and blue) is on sales, with package in roll which is more convenient for operation.With crimpting tool YH-244271-1

Inline and drop wire connectors can only be used with hand crimping tool YH-8028(3M item no.E-9BM) ,Yh-8021 crimping tool (3M item no.E-9Y) for your option.



Applications:


3M type wire connectors, UY connector, UY2 connector, UR connector, UB connector, UG connector and UDW2 connector are all available on sales. This wire connectors are used to connect two wires safely and fast with gel filling inside, which is moisture proof.



Specifications :


3M Scotchlok Connectors And Tools made great progression to the high-speed and high-bandwidth networks.The Products are widely used in the world Network region. With the Scotchlok series of tools and connectors from 3M, service providers can meet the demand for enhanced customer services such as high speed internet, video-on-demand and video conferencing.For the main products 3M Scotchlok Butt Connector UR,3M Scotchlok Butt Connector UR2,3M Scotchlok Butt Connector UY,3M Scotchlok Butt Connector UY2,3M Scotchlok Butt Connector UAL,3M Scotchlok Tap Connector UG,3M Scotchlok Tap Connector UB,3M Scotchlok Inline Connector U1B,3M Scotchlok Inline Connector U1R,3M Scotchlok Inline Connector UDW2,3M Scotchlok Crimping Tool E-9BM (YH-8028),3M Scotchlok Crimping Tool E-9Y(YH-8021).


Specifications :
UR connector
Gel filled for moisture resistance and for PIC cable applications, filled or unfilled. It accepts two or three wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 1.52 mm/.060". It is made of polycarbonate and is Cat. 5 compliant.

UY connector Gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled. It accepts two wires within wire range of 0.4-0.7 mm (26-22 AWG) and insulation outside diameter up to 1.52 mm/.06". It is made of polycarbonate and is Cat. 5 compliant.
UY2 connector Gel filled for moisture resistance and is suitable for PIC cable applications, filled or unfilled.It accepts two wires within wire range of 0.4-0.9 mm (26-19 AWG) and insulation outside diameter up to 2.08 mm/.082". It is made of polypropylene and is Cat. 5 compliant.
UG connector
llows direct tapping into existing plastic insulated solid copper conductors without interrupting service. It is gel filled for moisture resistance and for PIC cable applications, filled or filled. It accepts conductors within wire range of 0.4-0.9 mm (26-19 AWG) tap and 0.4-0.7 mm (26-22 AWG) run wire with insulation outside diameter up to 1.54 mm/.061" tap and 1.12 mm/.044" run wire. It is made of polycarbonate.
UDW2 connector is a four wire (one full pair) aerial inline drop-wire connector for copper or copper coated steel conductors. It is used for mid-span splices where strain relief is provided. Gel filled for moisture resistance and for PIC cable applications, it accepts conductors within wire range of 0.9-1.3 mm (19-16 AWG) and insulation outside diameter up to 4.4 mm/.175". It is made of polycarbonate.
