Product Details:
Payment & Shipping Terms:
|
| Material: | ABS Or PBT | Cat: | 5e As A Standard |
|---|---|---|---|
| Contactor: | Bronze Tin (Sn) Plating | Mount Type: | Back Mount |
| Color: | Grey Or Red Or Orange | UL Grade: | UL94-V0 |
| Application: | Telecom | Pair: | 10 Pair |
Quick Detail:
1, Material: PBT or ABS(UL94V-0)
2, Cat.5e as a standard (100Mhz)
3, Maximum insulation diameter of 1.8mm
4, T-connection possible with 2 wires in one slot
5, Tin-lead plating on the contact
6, Thickness of the contact 0.8mm,IDC embodied contact in plastic casing,Wiping resistant marking 1 to 0
Description:
Mechanical Performance:
Plastic Material: Thermoplastic
(Fire resistance UL94-0)
GB/T 5169.7-1985 standard
Contact material: Phosphor bronze
Contact coating: silver plating (20 - 40uinch)
Color: Grey, Red, Blue
Pulling-out force not less than 25N
Life: more than 200 times

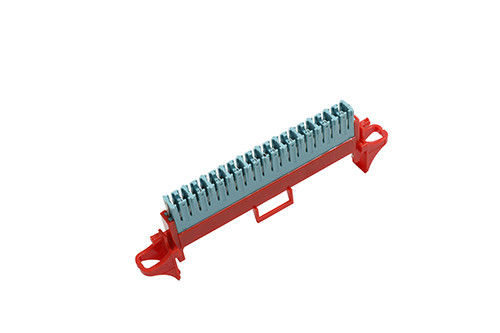

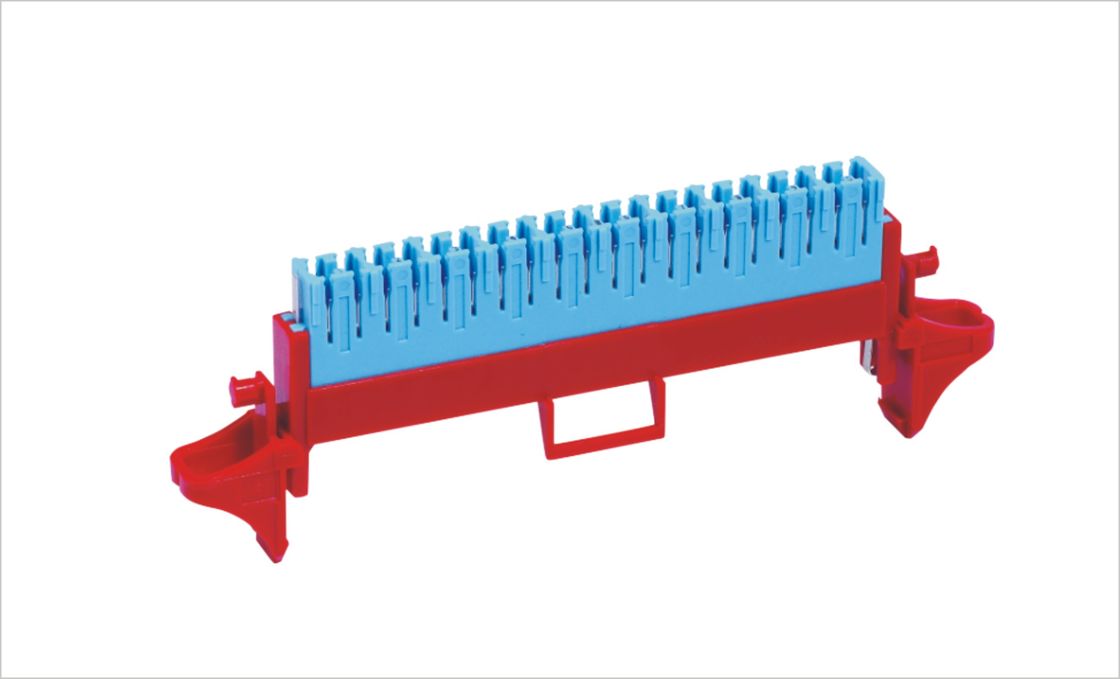

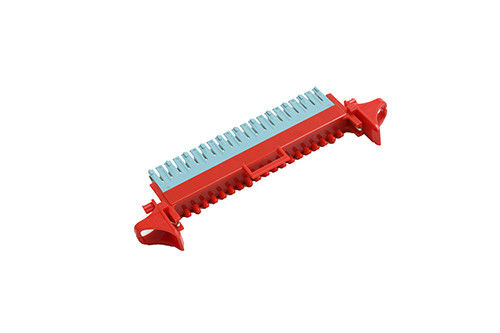

MT-C233796A0000 Single pair protection plugs specially for STG module
We offer various modules in telecommunication application, the products includes 5pair LSA type connection and disconnection module, 8pair and 10 pair connection disconnection krone module,back mount function and profile function, switching module,10pair Earth connection module, high band modules, 3M type quick connect module, 25pair splicing module, 10pair STG module, Subscriber terminal block, 50pair and 100pair krone block tag, back-mount frames, and other related accessories like LSA patch cord for disconnection and switching modules,earth bar,dust cover,label holder and so on.
The disconnection type CT module have provision of testing the electrical parameters of the exchange and distribution sides by insertion of test plug without actually disconnecting the jumper wire or the cable from the termination module.
The module housing material we mainly offer with imported GE PBT and ABS(UL94V-0).Both material we will use new rall material but not recycling material(first recycling or second recycling).So we can offer good performance modules.You can get very cheap products in the market but they are mainly made of such recycling material PBT or ABS.
Applications:
High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.
Specifications :
| Mechanical Performance | Insertion force : 40~75N |
| Pull Out Force : F≥25N(axial) F≥7.5N(radial) | |
| IDC Life : 200 times(20-26 AWG Solid wire) minimum | |
| Copper Conductor Diameter: Φ0.4~Φ0.8(mm) | |
| Environment Characteristic | Storage Tempreture: 40 to 70°C |
| Operating Temperature : 10 to 60°C | |
| Relative Humidity: 95%, noncondition | |
| Electrical Performance | Insulation resistance: 1000 Mohms minimum |
| Contact resistance :7 mohms maximum | |
| Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s |
