Cat.5E RJ45 Network keystone jack Krone 180 degree 8P8C modular jack High-Reliable YH7004

China Cat.5E RJ45 Network keystone jack Krone 180 degree 8P8C modular jack High-Reliable YH7004 supplier
Cat.5E RJ45 Network keystone jack Krone 180 degree 8P8C modular jack High-Reliable YH7004 supplier Cat.5E RJ45 Network keystone jack Krone 180 degree 8P8C modular jack High-Reliable YH7004 supplier Cat.5E RJ45 Network keystone jack Krone 180 degree 8P8C modular jack High-Reliable YH7004 supplier

Large Image :  Cat.5E RJ45 Network keystone jack Krone 180 degree 8P8C modular jack High-Reliable YH7004

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-7004

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pieces
Price: negotiable
Packaging Details: 1000 piece/box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces/day
Contact Now
Detailed Product Description
Material: Phosphor Bronze With Gold Plating Specification: Specification
Wiring: T568A Or T568B Connection: Plug Bayonet Coupling
Connectivity: Rj45 For Plug And IDC For Horizontal Cabling Housing: ABS And PC UL94V-0

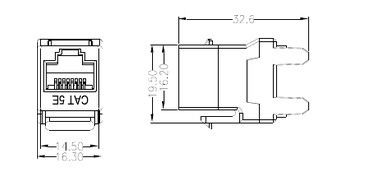

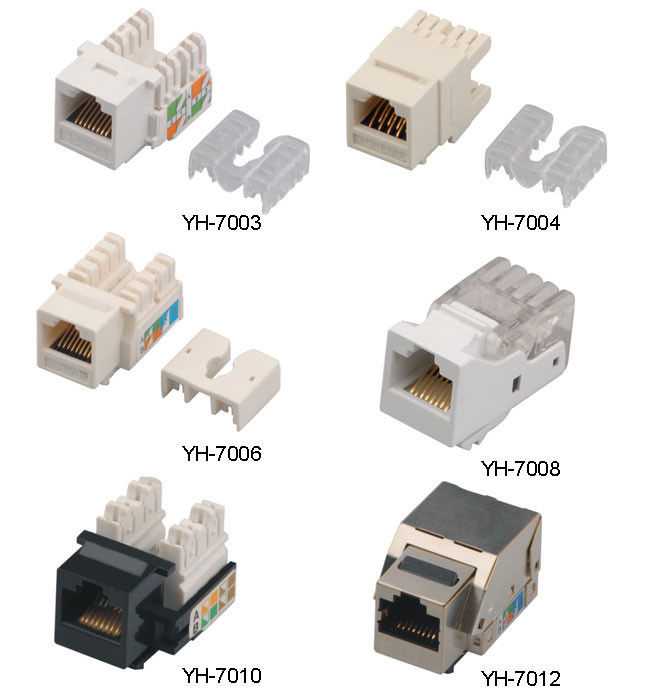

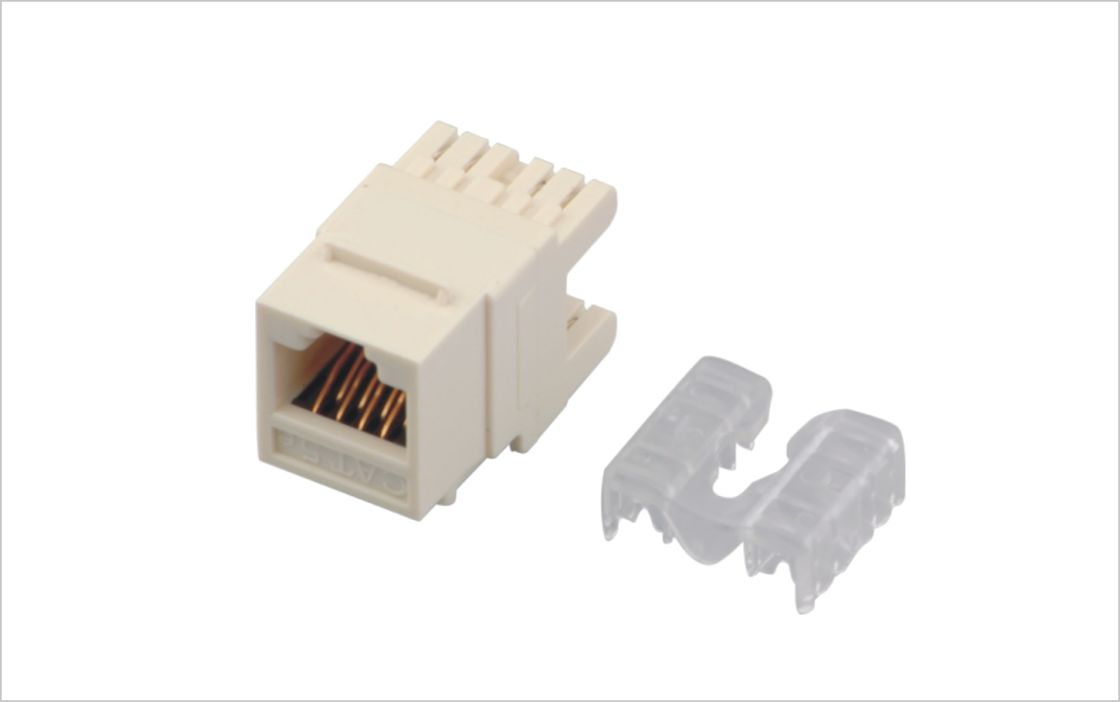

Cat.5E RJ45 Network keystone jack Krone 180 degree 8P8C modular jack High-Reliable YH7004

Quick Detail:



1. Cat5e unshielded RJ45 Keystone jack,gold plating 50U''.Gold plating for 3U'' to 50U'' is available. Standard Cat.6 and cat.6A on option,shielded and unshielded keystone jack types.

2. 110 IDC,Dual IDC,Krone IDC termination

3. TIA/EIA 568A and 568B wiring options

4. Module material - Polycarbonate Support, ABS Jack (UL94V-0)

5. Wire gauge 22-24 AWG,easy operation

6. Industry standard modular 'Keystone' dimensions,suitable for face plate,surface mount box,blank patch panel.



Description:



The keystone jack YH-7004 meet all requirement category 5e/6 performance standards Exceeds all ANSI/TIA/EIA 568B.



IDC: Copper conductor 0.4~0.7mm, max. connections>200 times

Sockets: max. instertions>700 times

Contact Resistance (excluding body resistance)≤5mΩ (under normal air condition)

Insulation Resistance:≥1000MΩ (under normal air condition)

Dielectric intensity: DC 1200V, no spark over and fly arc in 1 min.



Packed first each with a plastic bag,then into a inner box same with the accessories.The packed product can be saved for 2years with Temperature: -10℃∽+40℃ Relative humidity: max80% without corrosive gases.



Guide on crimping cable for this keystone jack:

Cat.5E RJ45 Network keystone jack Krone 180 degree 8P8C modular jack High-Reliable



With compact size, integral shutter, keystone mounting format a, our keystone Jack for voice and Category 5e and 6A ensure a smart, reliable installation. All copper conductors are plated with gold. The 8 pins of RJ45 tool-less keystone jack are effortlessly terminated in one simple operation resulting in reliable interconnection in record time. The jacks can be reused several times if a wiring mistake is made.



What is more, there are exact suited blank patch panel, face plate and surface mount box to use together with our keystone jack. In this case, you can make the whole link with better characters.





Applications:



The module is mainly used for connecting the same horizontal floor wiring and building work area, mainly for wiring equipment and terminal equipment or adapter converter connection. Products matching with copper twisted 4pair cable and copper coacial jumper.



Compatible with YH Faceplates
Compatible with YH Surface Mount Boxes
Compatible with YH Snap-in Patch Panels





Specifications :



Electrical Contact Resistance:110 Mohs MAX.
Insulation Resistance:1 000 megohms MIN 500 VDC
Dielectric Strength :750 VAC RMS 60Hz ,1 MIN
Environment Storge: -40~ 85°c
Operation: 0~70°c
Machanical Housing Material: PBT-UL90V-0 or ABS
180 degree for Cabling and 90 degree for cabling
Contact Material: PC-UL90V-0
Contact: Phosphor Bronze with Nickel Plating
RJ45 Jack:IFE:750 times MIN.
IDC Life :200 times MIN.
Wire:AWG 24-26
Cat.3 Cat5e Cat.6 and cat.6A on option
Retentiveness of insertion structure:50N 60±5s
