8 12 Port 10" wall mount patch panel , CAT.5E CAT.6 small mini patch panel YH4006

China 8 12 Port 10" wall mount patch panel , CAT.5E CAT.6 small mini patch panel  YH4006 supplier

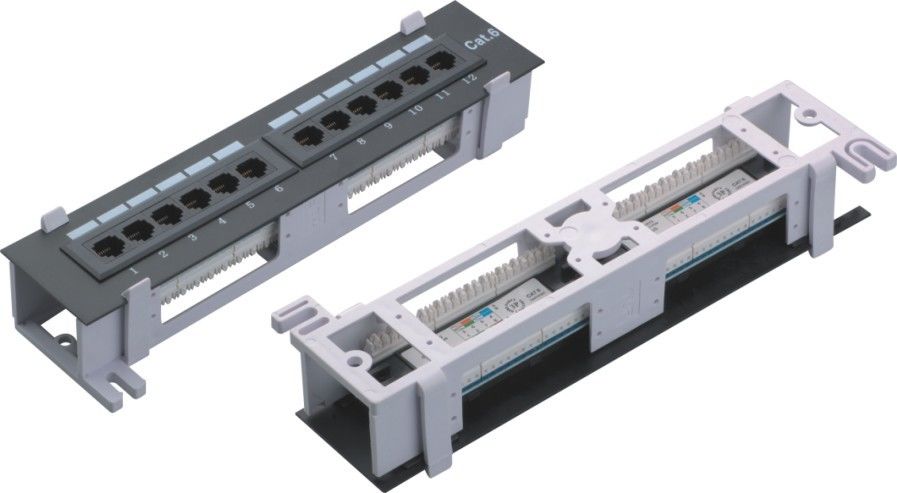

Large Image :  8 12 Port 10" wall mount patch panel , CAT.5E CAT.6 small mini patch panel YH4006

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-4006

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: 20 pcs per box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 per day
Contact Now
Detailed Product Description
Category: CAT.5E Or CAT.6 Application: Network
Capacity: 8&12 Port Shield: UTP
IDC: Dual Use,110 Type: Wall Mount Type

8 12 Port 10" wall mount patch panel , CAT.5E CAT.6 small mini patch panel YH4006

Quick Detail:

1. Category 5e, 6 Patch Panel,12ports

2. 10 inch,1U

3. IDC option: Krone IDC,110IDC,Dual IDC

4. IDC contract material : phosphor bronze with tin plating over nickel

5. Thickness of gold plating:3u”,6 u”, 15u”,30 u”, 50 u”

6. Available witha frame,patch panel holder

7. Meet or exceed the requirement of ANSI /TIA/EIA 568B.2



Description:



Material:
Panel: Cool rolling steel with static plastic spraying
Designation-strip holder: ABS (UL94V-0)
Jack: PBT (UL94V-0)
IDC: PC (UL94V-0)
Module Connector: Phosphor Bronze with Gold Plating
IDC Connector pin: Phosphor Bronze with Silver plating
IDC Connector: Insulation slicing of 22 to 26 AWG


We are professional patch panel manufacturer in China. Our patch panel includes voice type 25port and 50port, data type(cat.5e,cat.6, cat.6a) with 6port 12port 24port 48port and 72port on option. We use good PCD board and IDC connectors (krone IDC, 110 IDC, Dual IDC for option) to ensure the characters for each product. Specially for 24port Cat5e.UTP patch panel ,we offer not only in flat configuration as normal but also offer angel patch panels configuration.


The patch panel is offered universal wiring both T568A and T568B,color Coded TIA/EIA 568a and 568b Wiring For Easy Installation.Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires.Meet or exceed the requirement of ANSI /TIA/EIA 568B.2. We will do the Fluke test before sending you our products.



Each patch panel will be packed firstly with a plastic bag and then a firm inner box.Colorful inner box OEM is available.Usually we use a natural brown box for most of the clients.The patch panel we sell annual amount above 10000peices over the world.





Applications:



Network communication,LAN cabling network,Computer center
