Cat3 25 Port Voice Patch Panel / Fiber Patch Panel Krone 110 IDC T568A/B YH4001

China Cat3 25 Port Voice Patch Panel / Fiber Patch Panel Krone 110 IDC T568A/B YH4001 supplier

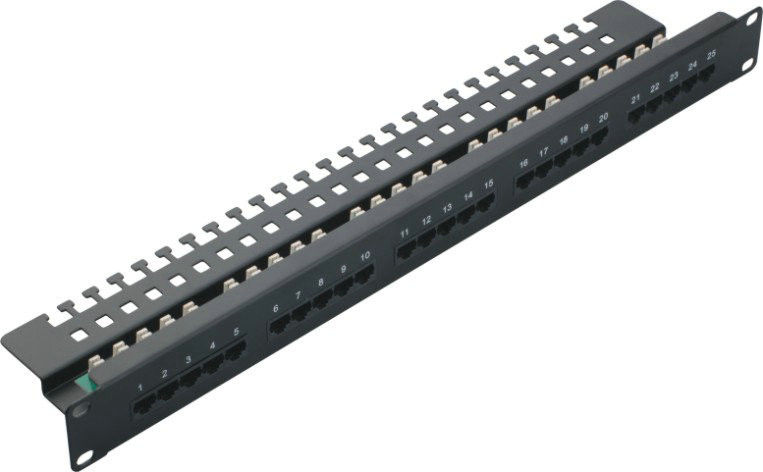

Large Image :  Cat3 25 Port Voice Patch Panel / Fiber Patch Panel Krone 110 IDC T568A/B YH4001

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO,RHOS,UL,CE
Model Number: YH-4001

Payment & Shipping Terms:

Minimum Order Quantity: 200 pcs
Price: negotiable
Packaging Details: 20 pcs per box
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per day
Contact Now
Detailed Product Description
Material: Cold-rolled Steel Color: Black
Capacity: 19 Inch Height: 1U
Category: 3 Patch Panel,25ports IDC Option: Krone IDC,110IDC,Dual IDC

Cat3 25 Port Voice Patch Panel / Fiber Patch Panel Krone 110 IDC T568A/B YH4001



Quick Detail:



1. Category 3 Patch Panel,25ports

2. 19 inch,1U

3. IDC option: Krone IDC,110IDC,Dual IDC

4. IDC contract material : phosphor bronze with tin plating over nickel

5. Thickness of gold plating:3u”,6 u”, 15u”,30 u”, 50 u”

6. Meet or exceed the requirement of ANSI /TIA/EIA 568B.2





Description:



Are you trying your best to look for a patch panel with good character but best price?


We are professional patch panel manufacturer in China. Our patch panel includes voice type 25port and 50port, data type(cat.5e,cat.6, cat.6a) with 6port 12port 24port 48port and 72port on option. We use good PCD board and IDC connectors (krone IDC, 110 IDC, Dual IDC for option) to ensure the characters for each product. Specially for 24port Cat5e.UTP patch panel ,we offer not only in flat configuration as normal but also offer angel patch panels configuration.


The patch panel is offered universal wiring both T568A and T568B,color Coded TIA/EIA 568a and 568b Wiring For Easy Installation.Termination accepts 22,24 26 AWG (0.64 ,0.5 and 0.4 )solid wires.Meet or exceed the requirement of ANSI /TIA/EIA 568B.2. We will do the Fluke test before sending you our products.



Each patch panel will be packed firstly with a plastic bag and then a firm inner box.Colorful inner box OEM is available.Usually we use a natural brown box for most of the clients.The patch panel we sell annual amount above 10000peices over the world.





Applications:



Telephone cat.3 krone IDC patch panel
1. Meet TIA/EIA-568-A and TIA/EIA-568-B
2. 25ports/50ports patch panel





Specifications :



YUHUI Voice and Data Patch panel
IDC Silver plated in the surface of the contact conductor
Insulation resistance 1000 Mohms minimum
Copper conductor 0.4-0.7mm( 22-26 AWG Solid wire)
Contact resistance 7 mohms maximum
Dielectric intensity AC 1000 Vrms 50Hz or 60Hz in 60s
Storage Temperature -40 to 70° C
Operating Temperature -10 to 60° C
Relative Humidity 95%, noncondtion
Design to mount Any standard 19" rack or cabinet (and 10inch type)
Space saving high-density 1U (24 port ,48port ,25port,50port available).
