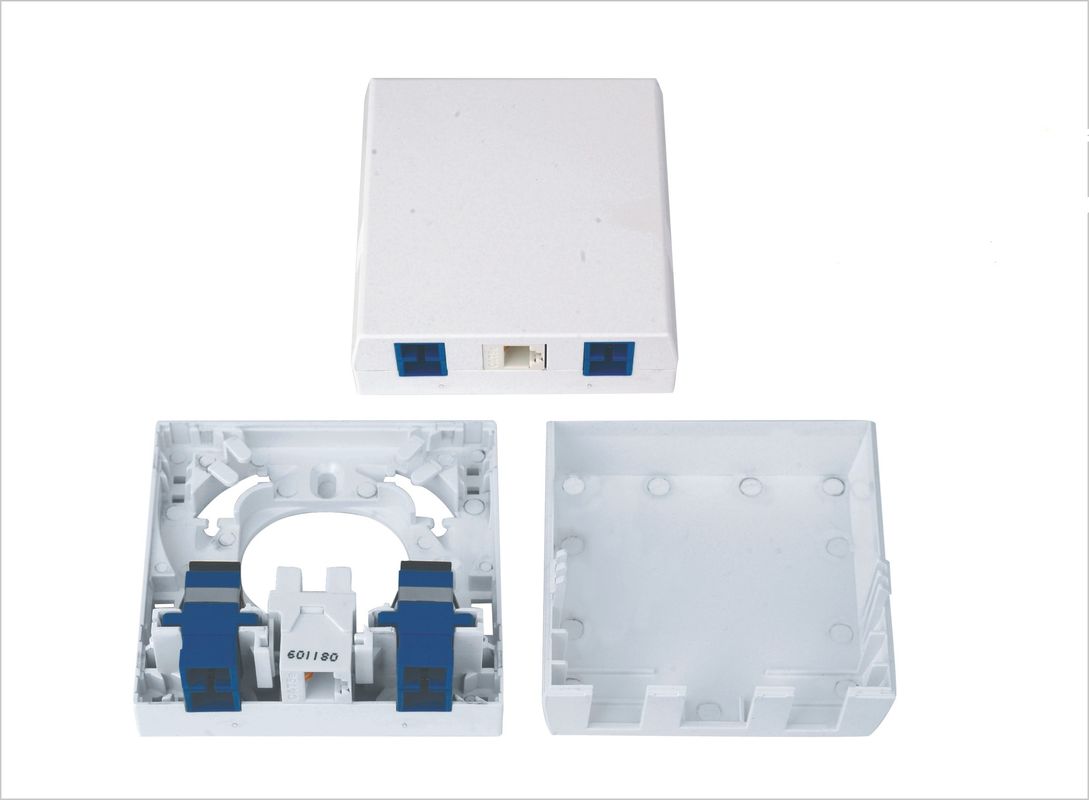

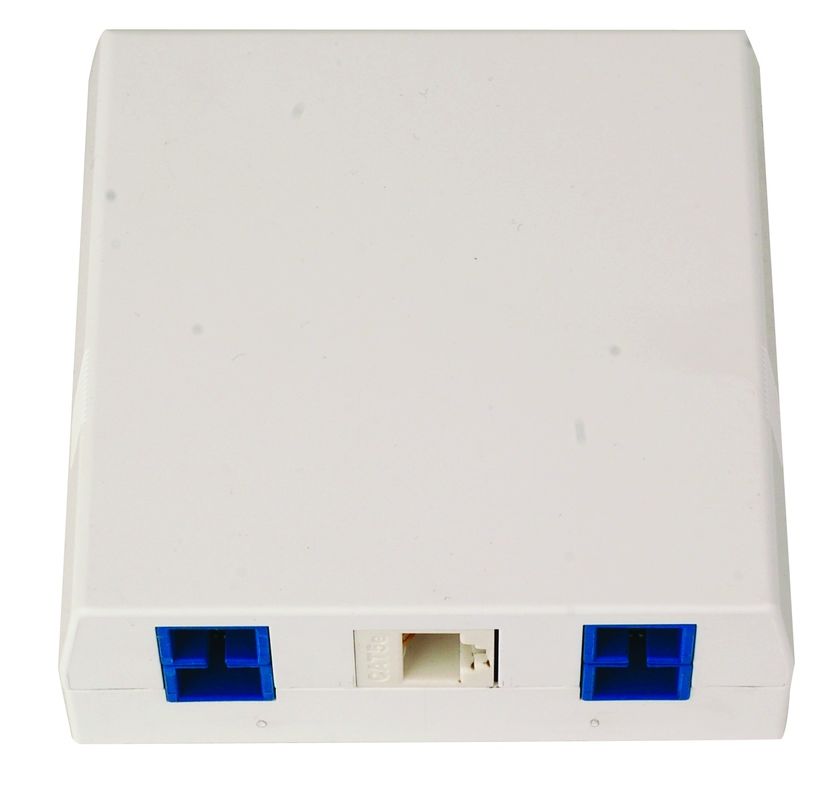

Fiber Optic Termination Wall Socket Single Family Unit For RJ45 And SC 86Type Mounting Box YH1043

Contact Now

Detailed Product Description

Material:	ABS	Color:	White
Size:	86mm*86mm	Application:	Single Family Unit For RJ45 And SC Termination
Connector:	SC Connector ,LC Connector	Ports:	4Port SC And 1 Port Rj45 Keystone Jack; Or 2 Port SC And 2 Port Rj45 Keystone Jack

Quick Detail:

1. Use ABS material.

2. Wall mounted,surface mounted

3. Light weight and compact.

4. 4Port SC and 1 Port Rj45 keystone jack; or 2 port SC and 2 Port Rj45 keystone jack

Description:

Features:

Used for splicing and termination between indoor fiber optic cable and pigtails

Termination box is used for wall mounted or desktop applications

Dimensions: 86 x 86mm

Lightweight, small size and easy installation

Made of high class engineering plastic ABS or PC,flame retardant.

Adopting the splice trays for easy operations

Reliable earth device

Equipment with fitting for fiber-optic cable fixing

Applications:

FTTx, FTTH, FTTB, FTTO, Telecom network, CATV.Provide fusion and storage appliance for optical cables,for indoor fiber optic cable distribution.

Specifications :

Material	Cold rolled steel for the box, ABS for the tray
Operating Temperature	-40°C~+60°C
Relative Humidity	<95%(+40°C)
Insulated resistance	≥2x10MΩ/500V(DC)
Capacity	4core
Installation Method (in overstriking )	Floor Standing / wall mounted / pole mounted / rack mounted / corridor mounted / mounted in cabinet
