| Material: | ABS | Color: | Black |
|---|---|---|---|
| Name: | Outdoor Cable Clip | UV: | With UV Protection |
| Screw Type: | With Screw | Clip For: | Outdoor Drop Wire |
Quick Detail:
1. The body is made of ABS,flame retardant .
2. for managing the fiber optic cables connected to a surface
3. With locking jaw structure capable of securing the cable
4. Effective and time saving for cabling.

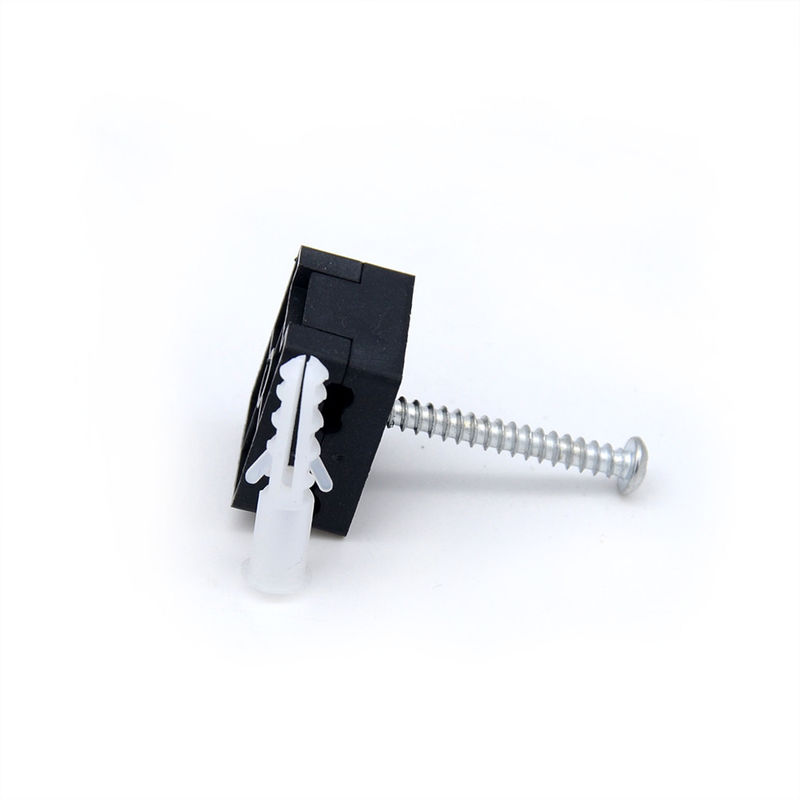

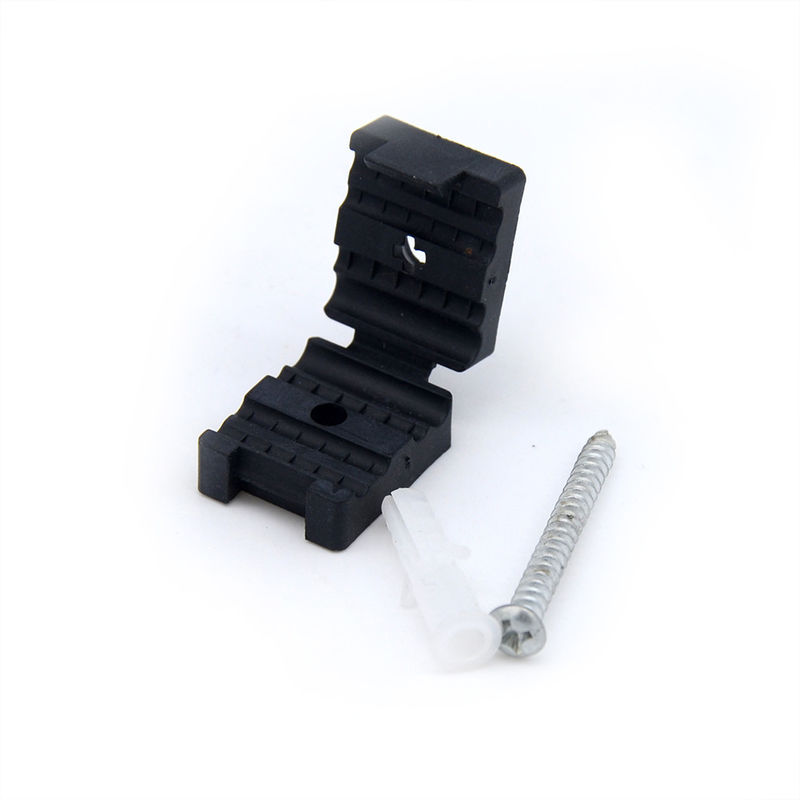

5. + cross screw 1piece
6. Size:25*20*14mm
7. ISO 9001:2008 Certified
Description:

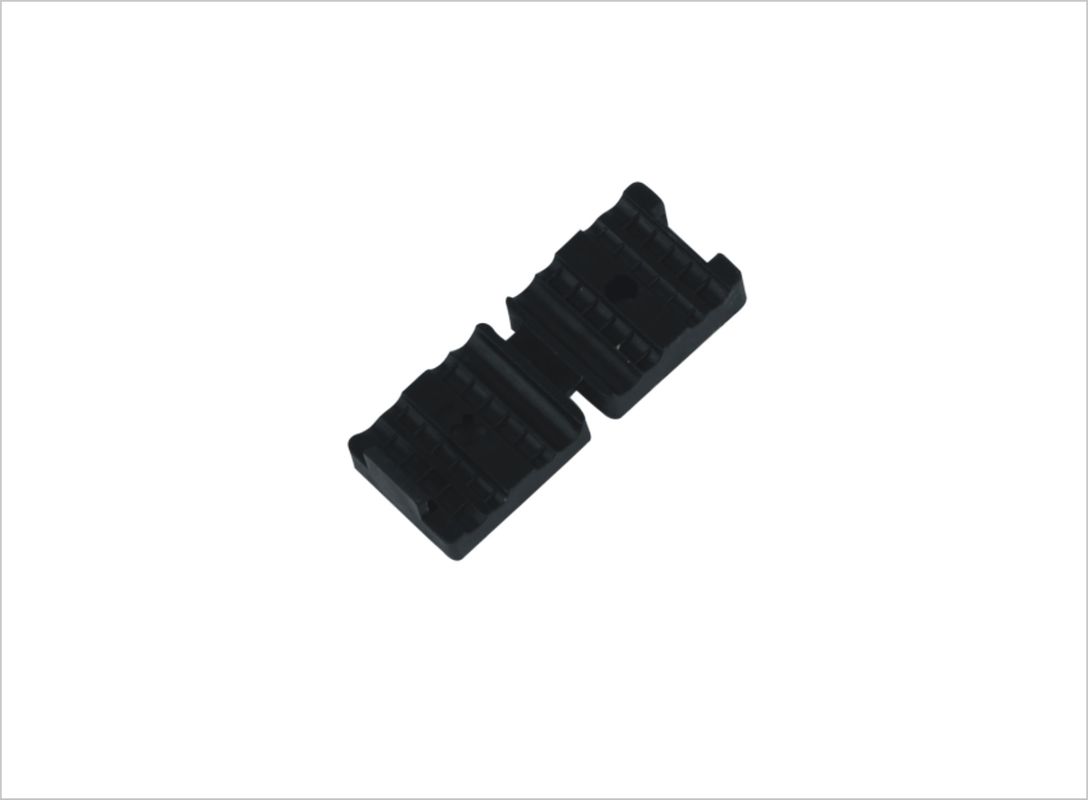

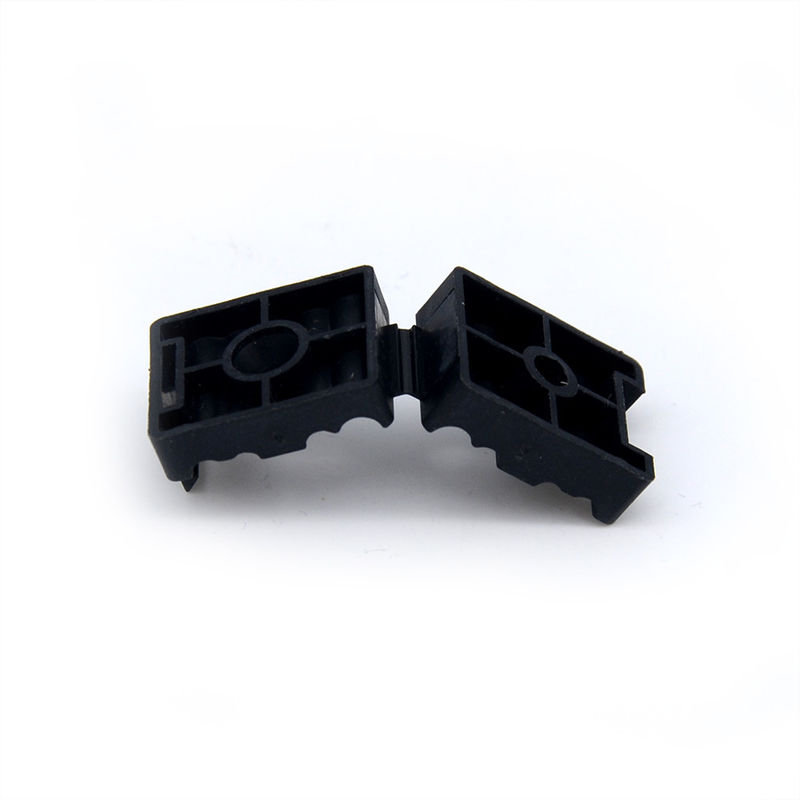

The fiber optic cable clip is mainly for managing the fiber optic cables connected to a surface,having a locking jaw structure capable of securing the cable for subsequent mounting to a surface according to the present invention.The upper and lower jaw portions and each define a fastener receiving aperture, there is a mechanica l fastener screw for securing the clip (and cable) to a mounting surface.
The ability to lock the clip onto the cable prior to mounting the cable to the mounting surface reduces the time required to install the cable.
The body is made of ABS,flame retardant .
Drop cabling with aerial supports
1 To make sure drop cable laying route, and route reconnaissance whether there are available installed drop cable support ,for each support can be fixed 8 drop cables.To fix the dropwire on the wall or pole people hard to touch.For indoor cable clip you can choose YH-1062,and for outdoor you can choose the screw type cable clip outdoor YH-1050.
2 according to the principle that the device is firm, the interval is even and the maintenance is convenient, the support and the installation position are selected.
3 using the tight steel hoop and draw hook YH-1048 fixed on the pole; With help of the expansion screw and screw to fix the C type hook YH-1046 on the outer wall, for the wooden wall to choose the P clamp YH-1073 for cabling.
4 To separate outdoor cable , wrapping the steel wire on the cable clamp YH-1049, and then hung on the supports.To choose the middle position to begin laying when the drop wire laying length is more than 100 meters.
The FTTH Installation Accessories Set concludes:junction box,fiber wall socket(also named Single family unit rosette,SFU rosette),draw hooks,cable clamp,cable wall bushings,cable glands,cable clips,tail duct,cable wiring duct,nail clip.
Cable bushings were originally designed for indoor use on sheet rock.Cable bushings are plastic grommets inserted into a wall to provide a clean appearance for coax cable,fiber optic cable and all cable entry. Cable bushings are a low cost and fast alternative to installing traditional wall plates.They protect the cable from sharp edges when in applications. We offer different shape and size cable wall bushings,wall tubes,fiber inside corner,fiber outside corner,flat elbow,raceway duct fitting,raceway molding,bend radius,tail duct,cable clamp,wiring duct.All used for fiber optic cabling and other wire cabling projects.
Fiber Optic Exterior Slack Storage W/O Holes hidden and organized.Slack storage box is used for exterior slack storage applications using single fiber cable. There are two stackable storage spools that allow storage of multiple single fiber cable drops. Both of these spools are removable. In an instance where only one spool is sufficient, the spool can either be secured at a lower level or can be mounted at an elevation onto the risers off the back of the inside of the box as a spool on the upper level. This allows additional storage under the spool.
Fiber Inside Corner, Inside corner for the self adhesive single fiber molding.
Fiber Flat Elbow, Flat elbow for the self adhesive single fiber molding.
Fiber Outside Corner,Outside corners for the self adhesive single fiber molding.
Self Adhesive Single Fiber Molding
Cable drawing hooks are made of metal,hanging hardware, hard material,with splint type and C type for option.The conduit box,pipe joint box single gang or double gang are made of PC material,fire restardant.
Applications:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
To fix the outdoor self-supporting drop wire cable with Fiber Reinforced Plastics (FRP) on the wall,we can use the cable clip YH-1050 type,with screw fixing firmly. To keep the cable to be horizontally and vertically straight on the wall, each two screw cable clip best distance with 60cm,and bending radius keeping over 15cm to protect the drop wires better.The screw cable clip YH-1050 is made of UV resistant material ,suitable for outdoor application.The size for the cable clip is 25*20*14mm.For more information,welcome to check with us directly.
