Stackable Fiber Cable Management Tray Splice Tray Well Fixed For Single Mode Or Multimode Fiber YH1026

China Stackable Fiber Cable Management Tray Splice Tray Well Fixed For Single Mode Or Multimode Fiber YH1026 supplier

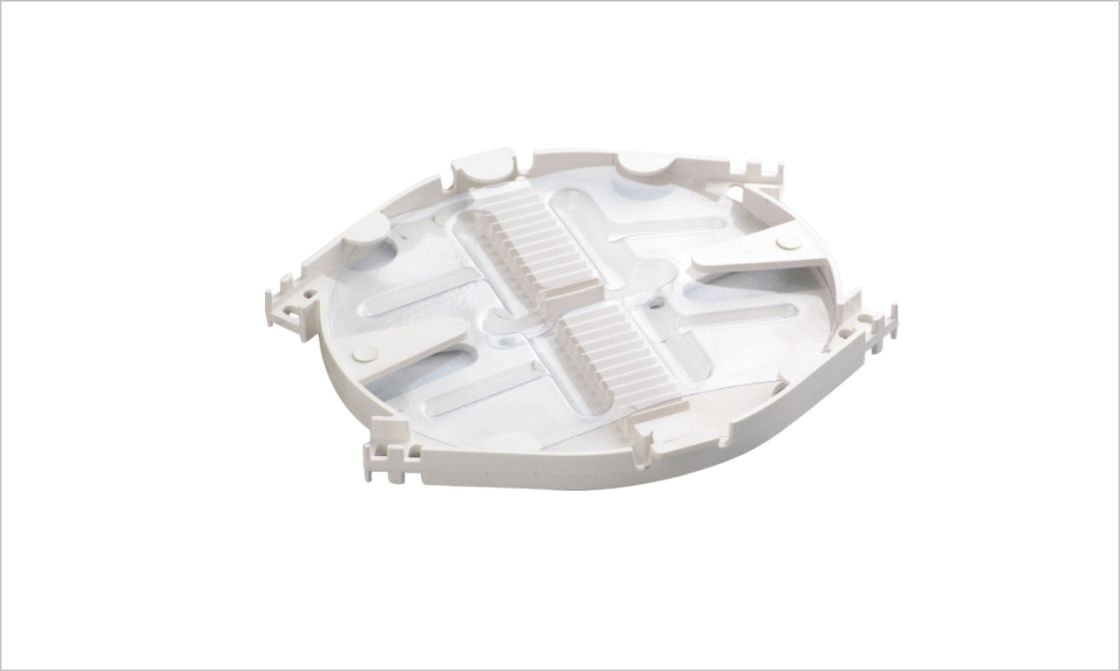

Large Image :  Stackable Fiber Cable Management Tray Splice Tray Well Fixed For Single Mode Or Multimode Fiber YH1026

Product Details:

Place of Origin: CHINA
Brand Name: YUHUI
Certification: ISO9001
Model Number: YH-1026

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: 1pcs/bag 10pcs/box 200pcs/carton
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000pieces/day
Contact Now
Detailed Product Description
Material: Cold-rolled Steel Application: FTTB,FTTH
Color: White Capacity: 12/24core
Adaptor: Duplex SC/LC/FC/SC Temperature: -40°C~+60°C

Stackable Fiber Cable Management Tray Splice Tray Well Fixed For Single Mode Or Multimode Fiber YH1026



1. 6core,12core or 24 core

2. crooked sleeve slot, well fixed

3. removerable splice module

4. ABS plastic

5. color optioal

6. ISO 9001:2008 Certified



Specifications

1. Environment temperature:-25℃~+45℃
2. Relative humidity:≤85%(30℃)
3. Atmosphere pressure:70~106KPa
4. Insulated Resistance:≥2×10MΩ/500V(DC)
5. Intensity≤15KV(DC)/1minno spark-over and no flying arc
6. Fiber bending radium guaranteed more than 40mm:≥40mm
7. Material: Cold rolled steel
8. High quality finish,without sharp edges.
9. With changeable panel for duplex or simplex adapter,easily combination with your real application.


Adoptable adapter types: FC, SC,LC/Duplex.



Description:



fiber optic splice tray is desired for optic fiber management, to provide a location for storage and protection to the fiber optical cable and splices, easy for installation,termination and movement.

The splice tray expands fiber splice capabilities as well as provides the splicing location for fiber optic cables.The fiber guild route supports a good protection when we place the balance fibers in good band ratio.

Use for single-mode or multimode fiber

Durable injection-molded plastic trays and covers

Center holes for mounting of the tray

12-fiber and 24-fiber splice trays are available in Wall Mounted enclosures & splice closures



Technical Specifications:


The cabinet has good performance of sealing with a protection level of IP65.

The cabinet is equipped with theft-proof lock, safety and reliability with good vandal-resistant function. The cabinet has flexible cable inlet and outlet structure and internal connecting structure. All operations are fully done at front.


Earth mode: the cabinet has two earth systems, one is protection earth by way of connecting the cable reinforcement with ground, and another is cabinet housing earth. The two earth systems are not connected with each other. They are separately connected with the ground of machinery house with their own earth wire.


It is applicable to ribbon and common cable. The door of the cabinet can be equipped either only at front or both at front and back. There is adequate space for fiber distribution and storage, as well as enough fiber winding trays. Hanging hooks, which are convenient for user to operate.


The direct splice area is specially equipped in the inside of the cabinet; the cables at two ends are connected in the direct splice area.


Protection grade: IP65

Standard working wavelength: 850nm, 1310nm. 150nm

Pressurization: there is no breakdown or flashover when pressurization≥3000V (DC)/1 min between the metal work piece of the cabinet and earth device.

Insulation resistance: the insulation resistance between the metal work piece of the cabinet and earth device. ≥2x10MΩ/500V(DC)

Each surface of the C can be bear bear a vertical pressure>980N. The outermost part of the door can be bear a vertical pressure>200N when the door is open.

The fixing position of cable can be bear can be bear an axial tensile force 1000N,as well as three times of recyclable torsion of ±90°

The curvature radius>40mm




Our Services :


All of our goods will pass QUALITY INSPECTIONS before shipment.


Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.

More than 22 years experience in in product production to make your order more smooth.

On time delivery, in general 10~15 days.

Multimode payment: T/T, Paypal,Western Union.

Special dimensions available according to request.

We have many certificates of our goods.







Specifications :

Material ABS/PC
Capacity 12core/piece,24core/piece
Cover Transparent cover or not.
Color Grey,Black,White
