Product Details:
Payment & Shipping Terms:
|
| Material: | SPCC | Color: | Grey Or Ivory |
|---|---|---|---|
| Capacity: | 10~20 Pair | Mount Type: | Wall Mount |
| UL Grade: | UL94-V0 | Application: | Indoor |
Quick Detail:
1. Can be with 1piece 10pair module or 2piece 10pair modules
2. Material: Cold rolled steel with powder coating
3. Wall mounted type,with screw fixing.
4. For LSA 10pair profile modules
5. With key and lock for secure
6. With earth wire installed for protection
Description:

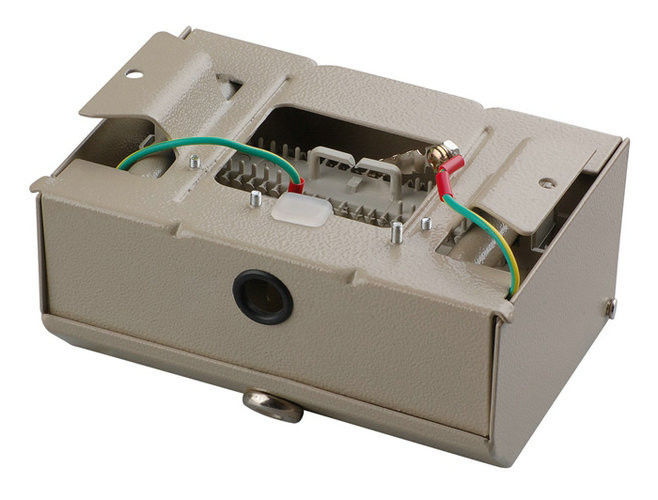

10pair metal distribution box lockable for LSA profile module
The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.
YH-3001 is one of the smallest capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or concrete poled,for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used metal distribution box with low voltage .There is earth wire inside for protection.
It offers easy access for terminations,there is standard DIN rail for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.Lid snaps in open position for easy access during installation .No wire stripping required. Lid may be locked to reduce the possibility of unauthorized entry .Rubber grommets at all drop wire entry and exit ports for protecting the wire from damage.All wire contacts are internal and environmentally sealed.
Applications:
For mounting to walls,wood,metal or concrete poled
Specifications :
| Metal Distribution Box :YH-3001 | |
| Item No | Description |
| YH-3001-10 | For 10 Pairs Profile module (1 piece module) |
| YH-3001-20 | For 20 Pairs Profile module (2 pieces modules) |
