|Name:||Terminal Block 20Pairs||Earthing:||With Earthing Cable Inside|
|The Cover:||Can Be Hold 90/135/180 Degree||STB Module:||Can Be YH-5027/5028/5029|
|Box:||PC Material For Water-proof||Application:||Outdoor For Pole Or Wall Mounting|
YUHUI DP box offers Strain relief clamps to hold the drop wires at both sides.The Drop wire entrance points at bottom (right & left) have proper rubber grommets with cross cut having provision of drop wire entrance either flat type or twisted pairs.
The housing and cover of the distribution Point is designed that in close position, it shall be completely sealed against ingress of wind driven rain, moisture, snow, dust, insects etc and shall provide full protection to the terminal block/modules.

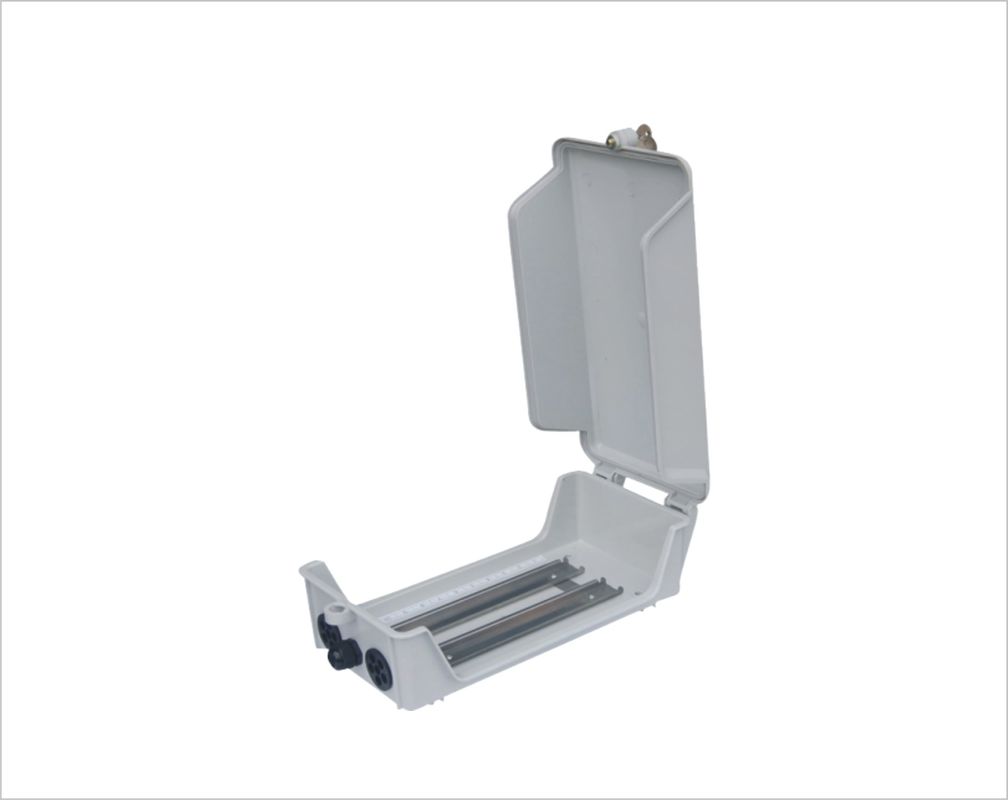

1. Outdoor DP Box Plastic for STB Modules 20pairs
2. Material:PC,with steel rails.
3. Cable grommets for wire entry and exit is for waterproof.
4. For subscribe connector unit unprotection and protection over voltage and over currence.
5. With lock
6. Application:Ourdoor or indoor
The subscriber connector unit consists of a rectangular box base with a cover and a connection module secured to the base.The top and base are hinged together, and the top is easily removable to facilitate working in cramped conditions.The cable grommets for wire entry and exit may be adjusted to conductor size and are also removable.A metal screw is provided for grounding purposes.
Insulation displacement contacts (IDC) shall be able to connect the conductors of different diameters from 0.4 to 1.2 mm even after number of repetition.
Application for replacing Tyco VX-SB subscribe connector unit terminal blocks,Connecting 1 pair module without protection,module with surge protection (gas-discharge instrument with surge protection to 230V) and module with overvoltage and overcurrent (overvoltage to 230V, and by two resistors PTC, which protect from the overcurrent).
Our product had successfully tested via Pressure test,terminal shock test,drop test,bump test,vibration test,salt fog test,corrosion test,splash proff test,Life test,durability test,thermal cycle test and heat age test. And successfully offered to big telecom companies over the world.
For mounting to walls,wood,metal or concrete poled
The distribution Point (DP) is designed for installation at distribution points in local networks to connect the customer’s telephones/CPEs.The distribution Point box are suitable for mounting on poles as well as for wall installation.It is environmentally protected for all outdoor applications.
Outdoor waterproof Distribution Box :The type of STB module is required as your application.
-G is for YH-5027 unprotected,
-R is for YH-5028 with GDT protection,
-O is for YH-5029 with GDT and PTC protection.
standard with expansion bolt for wall mounted.The accessories for pole mounted is on requirement.
|YH-3010-1||1pair DP box for STB module (EMPTY) 95*45*50mm|
|YH-3010-1G||1pair DP box with STB module(YH-5027) 95*45*50mm|
|YH-3010-1R||1pair DP box with STB module(YH-5028) 95*45*50mm|
|YH-3010-1O||1pair DP box with STB module(YH-5029) 95*45*50mm|
|YH-3010-2||2pair DP box for STB module (EMPTY) 145*95*75mm|
|YH-3011||10pair DP box for STB module (EMPTY) 195*195*85mm|
|YH-3012||20pair DP box for STB module (EMPTY) 350*190*95mm|
