| Box Base: | Polycarbonate | Box Cover: | Polycarbonate |
|---|---|---|---|
| Dropwire Grommet: | Thermoplastic Rubber | Cable Grommet: | EPDM |
| Drop Wire Housing Screw: | Special Passivated Direct + Lacquered Zamac Alloy | Assemble: | DIN Rail Indlcuded |
Quick Detail:

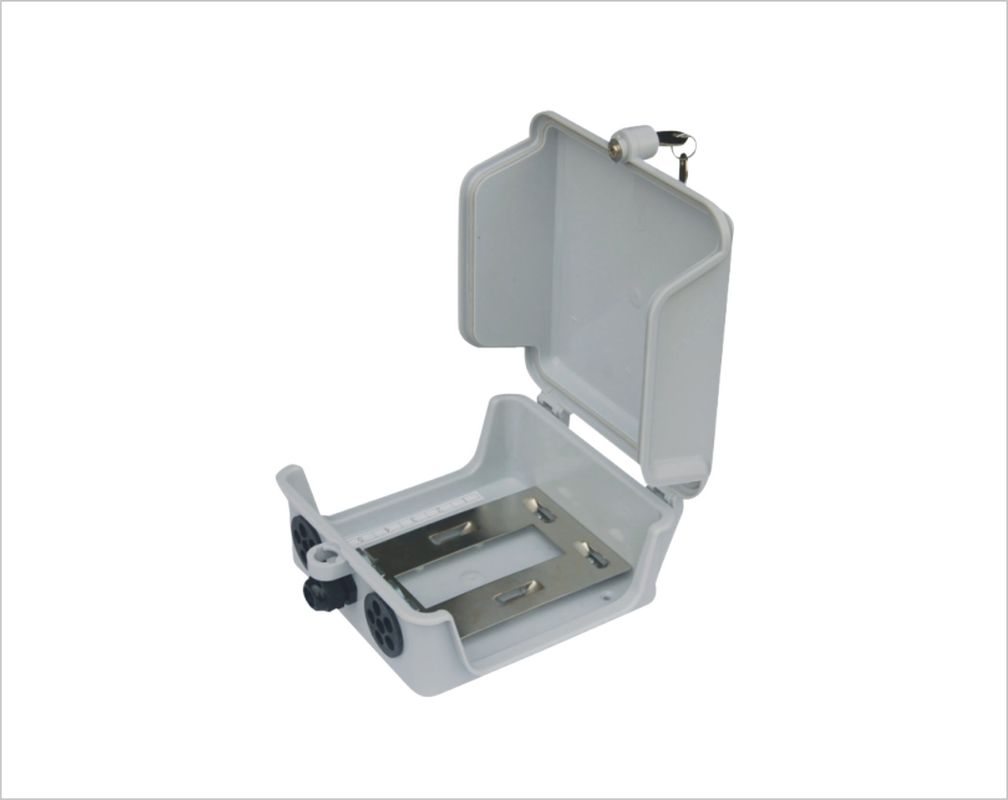

1. Outdoor DP Box Plastic for STB Modules 10pairs
2. Material:PC,with steel rails.
3. Cable grommets for wire entry and exit is for waterproof.
4. For subscribe connector unit unprotection and protection over voltage and over currence.
5. With lock
6. Application:Ourdoor or indoor
7.The module offers connection point between an exchange-side cable pair and a distribution pair
Description:
YUHUI DP offers Strain relief clamps to hold the drop wires at both sides.The Drop wire entrance points at bottom (right & left) have proper rubber grommets with cross cut having provision of drop wire entrance either flat type or twisted pairs.
The housing and cover of the distribution Point is designed that in close position, it shall be completely sealed against ingress of wind driven rain, moisture, snow, dust, insects etc and shall provide full protection to the terminal block/modules.
•Material:PC Material For the Box
•Item No.: YH-3011
•1Pcs DP Box and 10 Pc STB Module INSTALLED.
•The subscriber terminal block modules(STB module) could be YH-5027 plug-in module without protection,YH-5028 plug-in module with over-voltage protection,YH-5029 plug-in module with over-current and over-voltage protections
•WALL MOUNTED or POLE MOUNTED INSTALLATIONS
•Provide Earthing guide for Connection.
•Good Performance For Waterproof.
•Could be Ordered as Customer Special Request as: UV, VO Protection for the Box, Good Screw Up to 40N, Filled with Silcon Gelly.
The subscriber connector unit consists of a rectangular box base with a cover and a connection module secured to the base.The top and base are hinged together, and the top is easily removable to facilitate working in cramped conditions.The cable grommets for wire entry and exit may be adjusted to conductor size and are also removable.A metal screw is provided for grounding purposes.
Application for replacing Tyco VX-SB subscribe connector unit terminal blocks,Connecting 1 pair module without protection,module with surge protection (gas-discharge instrument with surge protection to 230V) and module with overvoltage and overcurrent (overvoltage to 230V, and by two resistors PTC, which protect from the overcurrent).
For mounting to walls,wood,metal or concrete poled
Modules are recommended for: the external application, including in cases when of an environmental condition it is most aggressive, the end fitting is in cases when at the point of user necessary the replacement of the types of the elements of electrical protection or types of the utilized filters.
Specifications :
Outdoor waterproof Distribution Box :The type of STB module is required as your application. | |
| Item No | Description |
| YH-3010-1 | 1pair DP box for STB module (EMPTY) 95*45*50mm |
| YH-3010-1G | 1pair DP box with STB module(YH-5027) 95*45*50mm |
| YH-3010-1R | 1pair DP box with STB module(YH-5028) 95*45*50mm |
| YH-3010-1O | 1pair DP box with STB module(YH-5029) 95*45*50mm |
| YH-3010-2 | 2pair DP box for STB module (EMPTY) 145*95*75mm |
| YH-3011 | 10pair DP box for STB module (EMPTY) 195*195*85mm |
| YH-3012 | 20pair DP box for STB module (EMPTY) 350*190*95mm |
