|Name:||2Pair Terminal Box||For Connector:||STB Module Unit|
|Material:||PC Or ABS||Application:||Outdoor|
|Color:||Grey||Protection:||Waterproof With Lock|
The module fixed inside of the DP boxes,is 1pair STB Module without Protection Subscriber Connector Unit VX-SB .The STB module (1 pair drop wire connection module with protection) provide a connection point between an exchange-side cable pair and a distribution pair for telecommunication equipment. It incorporates a 5-point plug in module to provide continuity and a range of other options.Removal of the plug-in module does not disturb wire connections but makes contacts to them available for testing of both sides of the telecommunication network.
The STB module (1 pair drop wire connection module with protection) is especially recommended for:
1. Outdoor connections where the environment conditions are extremely atrocious to protect telecommunication equipment and circuitry line.
2. Terminations where user development characteristics require future flexibility in terms of the type of protection or filtering capabilities. Offering box with capacity from 1pair to 20pair for application.

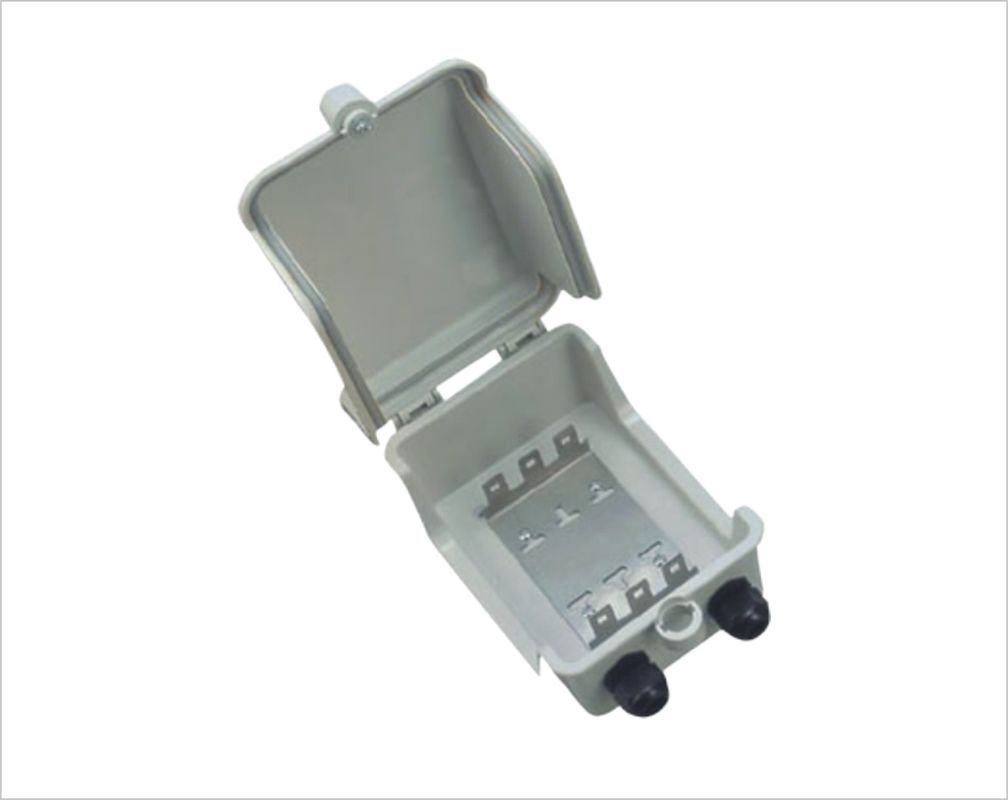

YH-3005 is another small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.

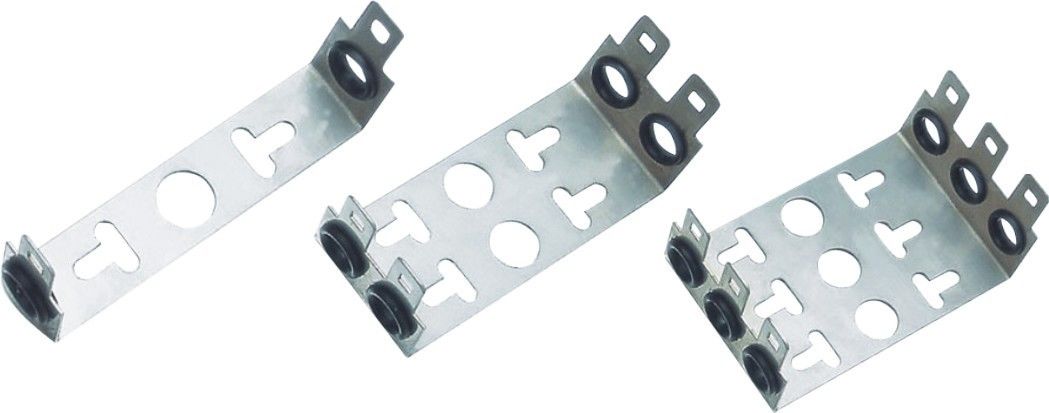

It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.The box can be used for 5pair to 30pair OEM as your requirement.
For mounting to walls,wood,metal or concrete poled
Outdoor waterproof Distribution Box :YH-3005,standard with expansion bolt for wall mounted.The accessories for pole mounted is on requirement.
Outdoor waterproof Distribution Box: The type of STB module is required as your application.
-G is for YH-5027 unprotected,
-R is for YH-5028 with GDT protection,
-O is for YH-5029 with GDT and PTC protection.
Standard with expansion bolt for wall mounted. The accessories for pole mounted is on requirement.
|YH-3005||30pair DP box with back mount frame, Size: 220*140*90mm|
|YH-3006A||50pair DP box with back mount frame, Size:195*195*85mm|
|YH-3006B||100pair DP box with back mount frame, Size: 350*190*95mm|
