|Material:||PC,UV Protection And Waterproof||Color:||White|
|Mounting:||Wall Mounting||Fit For:||Krone LSA Connection Module|
|Lock:||With Lock||With:||Back Mount Frame Installed|
1. Can be with 5piece(10pieces) 10pair modules
2. Material:PC (UL94V0),Waterproof Performance IP54,UV protection.
3. Wall mounted type or pole mounted,with installation accessory.Standard pack for wall mounted.
4. For LSA 10pair back mount modules,the mounting frame is included but the LSA module will be ordered separately.
5. With key and lock for secure, key lock and screw lock for option
6. Application:Ourdoor or indoor
The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.
Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.
It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.The box can be used for 5pair to 30pair OEM as your requirement.
For mounting to walls,wood,metal or concrete poled

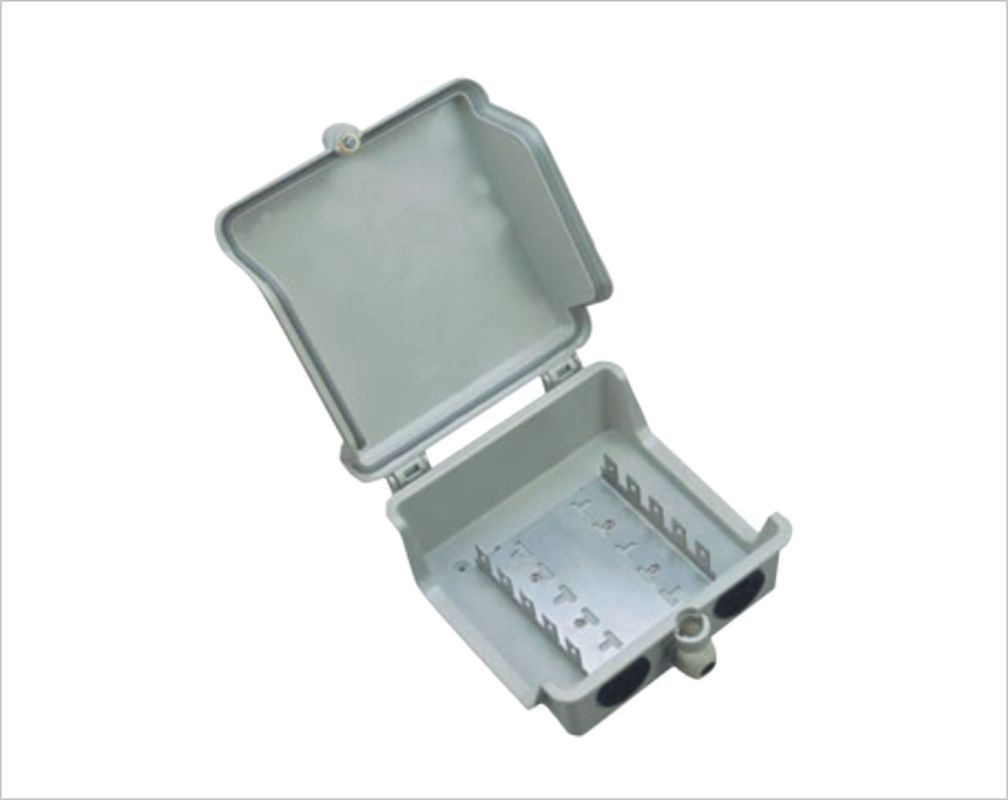

Outdoor waterproof Distribution Box :YH-3006,standard with expansion bolt for wall mounted.The accessories for pole mounted is on requirement.
|YH-3005||30pair DP box with back mount frame, Size: 220*140*90mm|
|YH-3006A||50pair DP box with back mount frame, Size:195*195*85mm|
|YH-3006B||100pair DP box with back mount frame, Size: 350*190*95mm|
